Seat Leon >> 1.6 l MPI engines

Removing

  • Remove air filter housing.

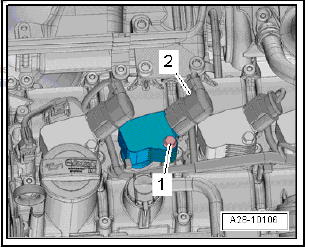

  • Unplug the electrical connector -2-.
  • Unscrew the bolt -1-.

Maintenance

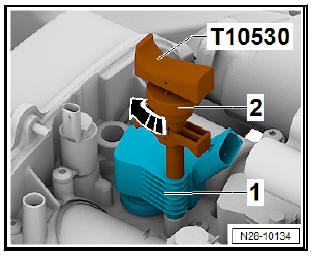

  • Push puller - T10530- into hole in ignition coil -1- to stop.
  • Tighten knurled nob -2- in -direction of arrow-.

Maintenance

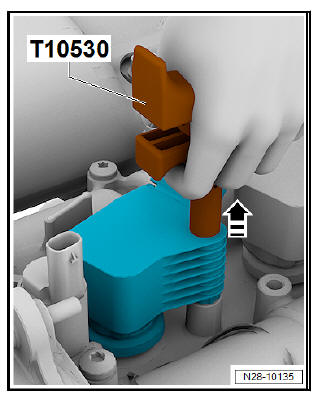

  • Pull ignition coil out of camshaft housing in -direction of arrow- using puller - T10530- .

Repeat step for all ignition coils with output stage.

NOTICE Observe installation position of ignition coils with output stages! Check that the conducts have not been bent or damaged.

  • Unscrew spark plugs using spark plug socket and extension - 3122 B- .

Maintenance

Installation

  • Screw in new spark plugs using a spark plug socket and extension - 3122 B- to the tightening torque.
  • Align and insert all ignition coils with output stage one after another loosely into spark plug hole.
  • Press ignition coils with output stage onto spark plugs evenly by hand (do not use any tools).

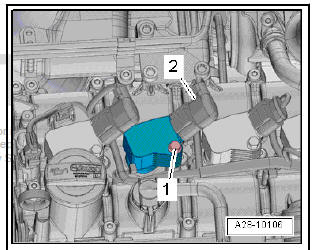

  • Tighten the screw -1- of the ignition coils at tightening torque.
  • Connect the electrical connector -2-.

Repeat step for all ignition coils with output stage.

  • Install air filter housing

Maintenance

    1.2l and 1.4I TSI engines
    Removing Loosen hose clips -1- and -2- and remove air hose. Only engines with code CZEA Disconnect connectors -2-, and pull off air hose -1-. Continue for all engines Unplug elec ...

    1.8 l and 2.0 I TSI engines
    Removing Remove engine cover. Unlock electric plug connections -1 to 4- while removing all of the ignition coil plug connections. Unscrew the -arrows- ignition coil screws. Pu ...
