Seat Leon >> 1.8 l and 2.0 I TSI engines

Removing

  • Remove engine cover.

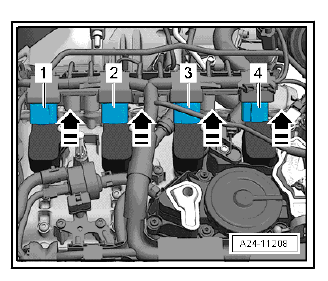

  • Unlock electric plug connections -1 to 4- while removing all of the ignition coil plug connections.

  • Unscrew the -arrows- ignition coil screws.

Maintenance

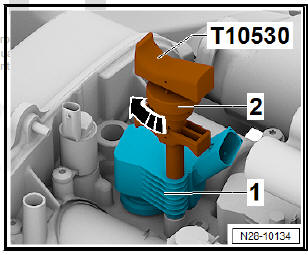

  • Push puller - T10530- into hole in ignition coil -1- to stop.
  • Tighten knurled nob -2- in -direction of arrow-.

Maintenance

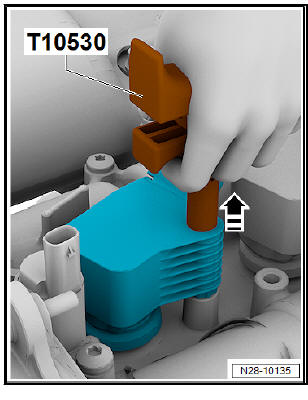

  • Pull out the ignition coil with the puller - T10530- by pulling in the direction of the -arrow-.

Repeat this process with all ignition coils.

NOTICE Note installation position of ignition coils with output stages.

Check that the conducts have not been bent or damaged.

  • Remove spark plugs with spark plug socket and extension - 3122 B- .

Maintenance

Installation

  • Screw in new spark plugs using a spark plug socket and extension - 3122 B- to the tightening torque.
  • Align the ignition coils one after another and feed into the cavities for the spark plugs without pulling on them.
  • Press ignition coils onto spark plugs by hand evenly (do not use tool).
  • Tighten the screws of the ignition coil to tightening torque.
  • Attach electrical connectors.
  • Install engine cover panel

Maintenance
