Seat Leon >> Spark plugs: replace

Special tools and workshop equipment required

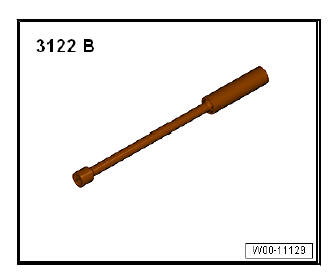

  • Spark plug socket and extension - 3122 B-

Maintenance

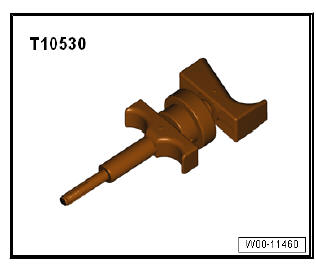

  • Puller - T10530-

Maintenance

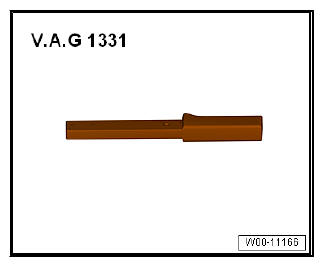

  • Torque wrench - VAG 1331-

Maintenance

NOTICE Identification of the spark plugs.

Observe environmental requirements for disposal.

TDI common rail engines
Removing Unscrew the fixing screws -arrows- and lift the upper section of the air filter in the direction of the side with the complete air ducts. Remove the air filter cartridge -1- and the ...

1.0 l TSI engines
Removing Remove the air filter housing. Remove air guide hose. Unplug the electrical connector -2-. Unscrew the bolt -1-. Push puller - T10530- into hole in ignition coil -1- to stop ...
