Seat Leon >> 1.2l and 1.4I TSI engines

Removing

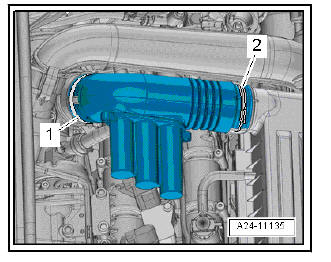

  • Loosen hose clips -1- and -2- and remove air hose.

Maintenance

Only engines with code CZEA

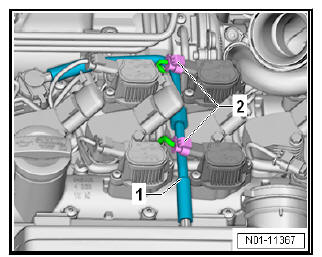

  • Disconnect connectors -2-, and pull off air hose -1-.

Continue for all engines

Maintenance

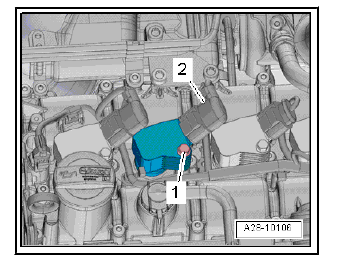

  • Unplug electrical connector -2-.
  • Unscrew the bolt -1-.

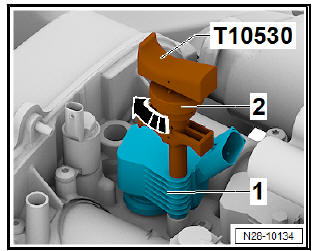

  • Push puller - T10530- into hole in ignition coil -1- to stop.
  • Tighten knurled nob -2- in -direction of arrow-.

Maintenance

  • Pull out the ignition coil with the puller - T10530- by pulling in the direction of the -arrow-.

Repeat this process with all ignition coils.

NOTICE Note installation position of ignition coils with output stages.

Check that the conducts have not been bent or damaged.

  • Remove spark plugs with spark plug socket and extension - 3122 B- .

Maintenance

Installation

  • Screw in new spark plugs using a spark plug socket and extension - 3122 B- to the tightening torque.
  • Align the ignition coils one after another and feed into the cavities for the spark plugs without pulling on them.
  • Press ignition coils onto spark plugs by hand evenly (do not use tool).

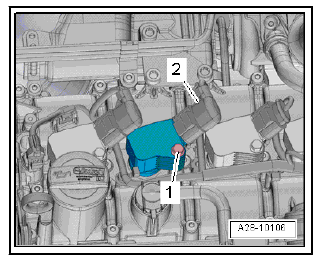

  • Tighten the screw -1- of the ignition coils at tightening torque.
  • Plug in the electric connector -2-.

Repeat this process with all ignition coils.

For installation, proceed in the reverse sequence.

Maintenance

    1.0 l TSI engines
    Removing Remove the air filter housing. Remove air guide hose. Unplug the electrical connector -2-. Unscrew the bolt -1-. Push puller - T10530- into hole in ignition coil -1- to stop ...
