Seat Leon >> Sub-frame

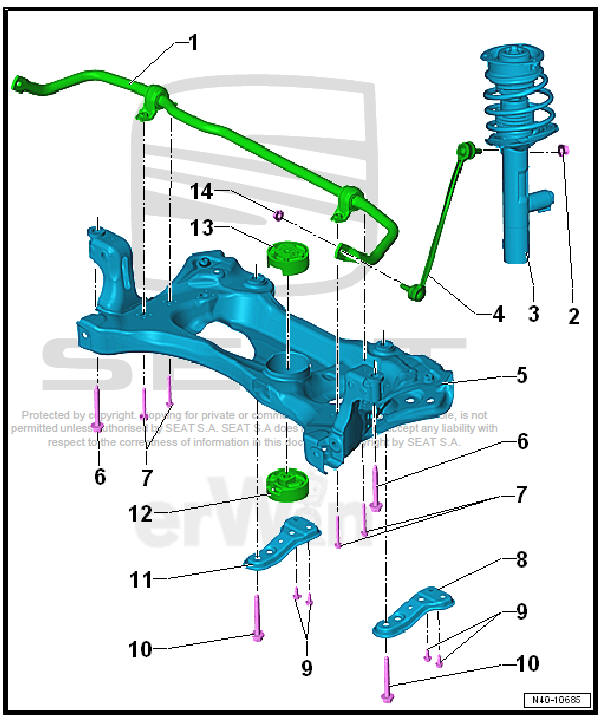

Assembly overview - subframe
- - Anti-roll bar with rubber
bush
- Removing and installing
- - Nut
- When tightening, counterhold multi-point socket of joint pin
- Always renew after removing
- 65 Nm
- - Suspension strut
- - Connecting rod
- Removing and installing
- - Sub-frame
- Securing
- Lowering
- Removing and installing without steering box
- Removing and installing with steering box
- - Bolt
- Always renew after removing
- 70 Nm +180º
- - Bolt
- Always renew after removing
- 20 Nm +180º
- - Left support
- - Bolt
- Always renew after removing
- M8: 20 Nm +90º
- M10: 50 Nm +90º
- - Bolt
- Always renew after removing
- 70 Nm +180º
- - Right support
- - Lower bonded rubber bush for pendulum support
- Replace
- - Upper bonder rubber bush for pendulum support
- Replace
- - Nut
- When tightening, counterhold multi-point socket of joint pin
- Always renew after removing
- 65 Nm
- Removing and installing subframe without steering box
- Removing and installing subframe with steering box
- Repairing subframe
- Removing and installing anti-roll bar
- Removing and installing coupling rod
- Secure the subframe
- Lowering subframe
Front suspension
Front axle
Overview of fitting locations - front axle
...
Removing and installing subframe without
steering box
Special tools and workshop equipment required
Torque wrenches - V.A.G 1332-
Engine elevator - V.A.G 1383 A-
Removing
Note
The subframe is removed together with the suspension links. ...
