Front axle

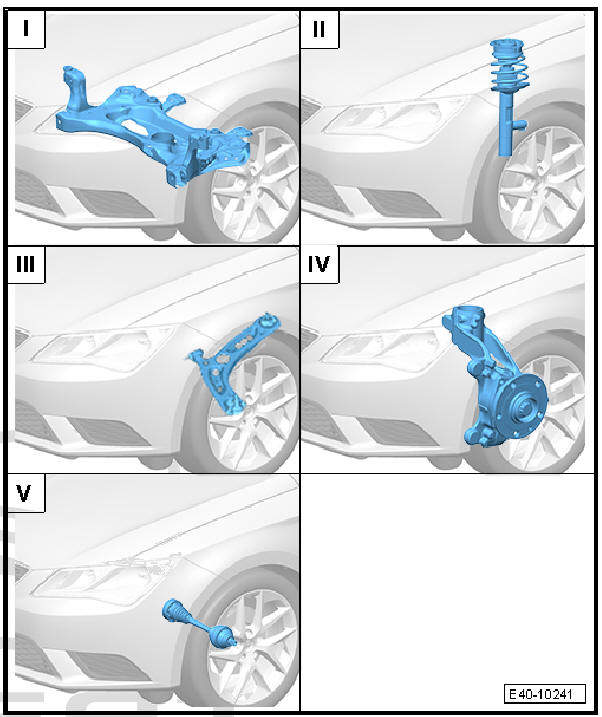

Overview of fitting locations - front axle
- Sub-frame
- Suspension strut, upper suspension link
- Lower suspension link, swivel joint
- Wheel bearing unit
- Drive shaft
