Seat Leon >> 1.6 l MPI engines
SEAT Leon Service and Repair Manual / Maintenance / Description of work / Air filter: Clean housing and renew filter
element / 1.6 l MPI engines
Removing

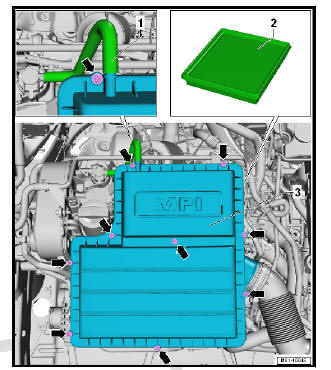

- Pull air hose -1- off upper part of air filter.
- Undo and remove bolts -arrows- from upper part of air filter.
- Lift off upper part of air filter -3- and move aside complete with hoses.
- Remove the air filter cartridge -2-.
Installation
- Check housing and water drains for soiling, clean them, if necessary.
- Insert air filter element -2- centrally into mounting in lower part of air filter.
- Carefully fit upper part of air filter -3- onto lower part of air filter without applying excessive force. Screw in securing bolts and tighten them to specified torque.
- Fit air hose -1- onto upper part of air filter again.
