Seat Leon >> Removing and installing rear footwell vent
Note The illustration shows the left side by way of example.
Removal:
- Turn off the ignition and all electricity consumers.
Vehicles without access and start authorisation system
- Remove ignition key, if fitted.
Vehicles with access and start authorisation system
- Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.
Continued for all vehicles
- Remove the sill moulding.
- Remove the front seat .
- Remove the centre console.
- Remove footrest.
- Remove the noise insulation from the floor in the area of the sill panel trim.

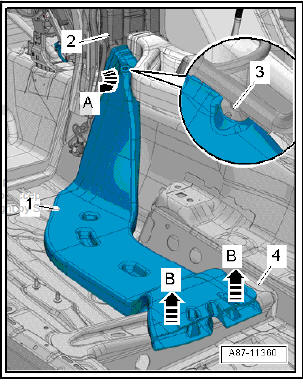

- Lever out the clip -3- using the electrical device.
- Prise off the cable clip -4-.
- Lift up the rear footwell vent -1- -arrows B-, detach from the heater and air conditioning unit -2- -arrow A- and take out to the side.
Installing
Install in reverse order of removal; note the following.

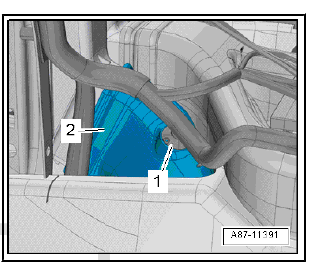

- Check the cable clip -1- for damage before pressing on at the footwell vent -2-.
Note A loose cable clip or damaged seal can lead to flow noise.
Removing and installing rear centre console vent
Removal:
- Turn off the ignition and all electricity consumers.
Vehicles without access and start authorisation system
- Remove ignition key, if fitted.
Vehicles with access and start authorisation system
- Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.
Continued for all vehicles

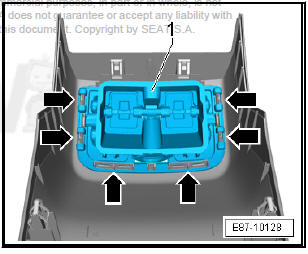

- Remove trim with vent -1- .
Press on the attachments -arrows- and remove the vent -1-.
Installing
Installation is carried out in the reverse order.
Removing and installing driver side footwell
vents
Removal:
Turn off the ignition and all electricity consumers.
Vehicles without access and start authorisation system
Remove ignition key, if fitted.
Vehicles with access and start author ...
Removing and installing air ducts
Removing and installing rear vent air
duct
Removal:
Turn off the ignition and all electricity consumers.
Vehicles without access and start authorisation system
Remove ignition key, if fit ...
