Removing and installing rear vent air duct

Removal:

• Turn off the ignition and all electricity consumers.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Remove trim with vent.

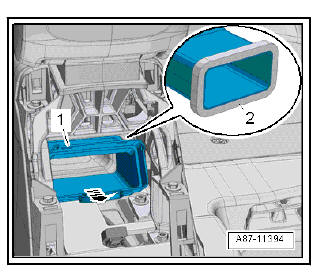

• Detach the air duct -1- to the rear.

Installing

Installation is carried out in the reverse order.

Rear centre console air duct: Removing and installing

Removal:

• Turn off the ignition and all electricity consumers.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Disconnect battery.
• Remove the centre console.

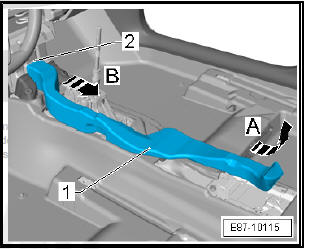

• Swivel the air duct -1- upwards at the rear -arrow A-, release it from the fastener at the air distribution housing -2- -arrow B- and detach.

Installing

Installation is carried out in the reverse order.
