Seat Leon >> Removing and installing inner window slot trim panel

Special tools and workshop equipment required

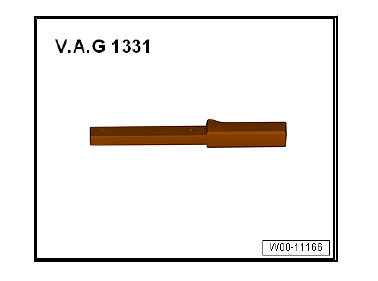

  • Torque wrench - V.A.G 1331-

Front doors, door components, central locking

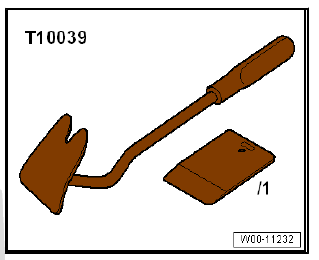

  • Wedge - T10039/1-

  • Removing
  • Installation

Removing

Note The sequences below describe the processes for removal and installation for the left side of the vehicle. The corresponding sequences for the right side are similar with the exception that, where applicable, the scope of the process is written by yourself.

  • Removing interior trim of front door: Front door trim: removing and installation; front door trim: removing and installation.

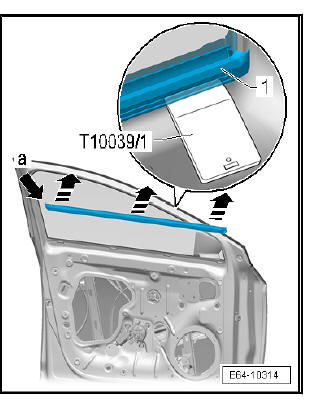

  • Unfastening the interior window frame gasket -1-; start at the end indicated by -arrow A-.
  • Insert the wedge - T10039/1- under the window shaft seal and disengage in the direction of the -arrows- on the door.

fitting

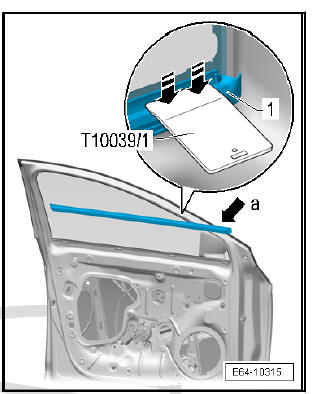

  • Fitting the internal window frame gasket -1-; start at the end indicated by -arrow a-.
  • Using your hand, press the window shaft seal on and engage in the door flange evenly.

Front doors, door components, central locking

  • Using the wedge - T10039/1- apply equal pressure over the entire surface of the window shaft seal.
  • Take care that they are fitted to the flange correctly.

Front doors, door components, central locking
