Front doors / door components / central locking: Main component

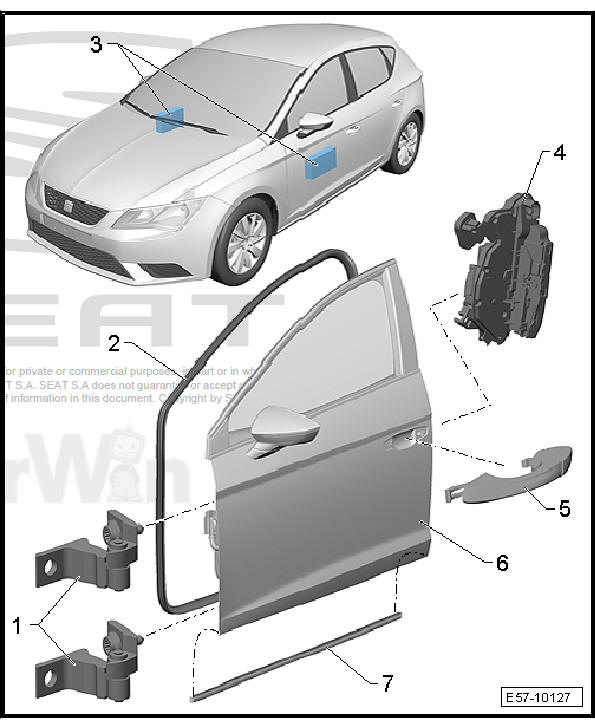

Front doors, door components, central locking

  1. - Hinge
  2. - Front door joint
  3. - Front door control unit
    • Driver side door control unit - J386- and Passenger side door control unit - J387-
  4. - Lock in the front door
  5. - Outside handle (front door)
  6. - Front door
  7. - Gasket for noise damping

5-door models

  • It is attached to the door with 11 retaining clips

3-door models

  • It is attached to the door with 22 retaining clips
