Seat Leon >> Removing and installing filler neck compartment lid

Special tools and workshop equipment required

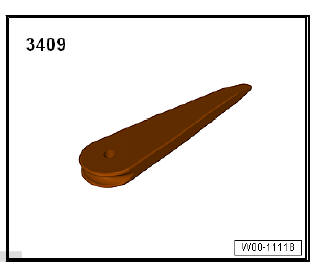

  • Release lever - 3409-

Bonnet, rear lid

Removing

  • Open tank flap

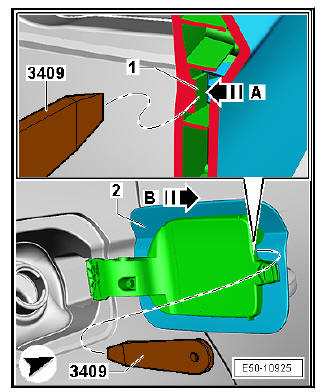

  • Insert - 3409- the lever into the recess and press the friction finger -1- in -arrow direction A- and at the same time push the tank flap in -arrow direction B- .

fitting

Installation is done in reverse order of removal operations.

Bonnet, rear lid

Removing and installing actuator

Removing

  • Remove tank flap unit .

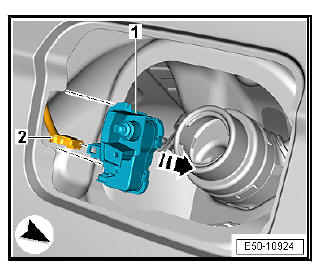

  • Push the tank flap lock - V155- to the side -arrow- and push out of the chassis.
  • Disconnect connector -2-.

fitting

Installation is done in reverse order of removal operations.

Bonnet, rear lid

    Removing and installing tank flap unit
    Special tools and workshop equipment required Release lever - U30800- Removing Loosen the drain tube from the fixing on the wheel housing -arrow-. Open the fuel tank flap and unscrew ...
