Seat Leon >> Removing and installing tank flap unit

Special tools and workshop equipment required

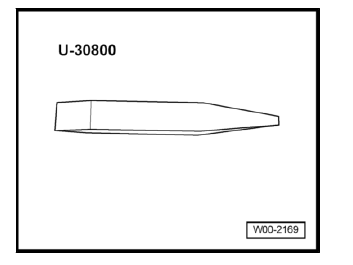

  • Release lever - U30800-

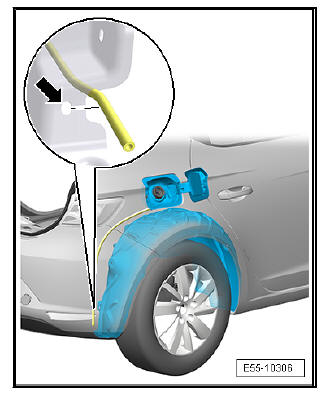

  • Loosen the drain tube from the fixing on the wheel housing -arrow-.
  • Open the fuel tank flap and unscrew the fuel plug.

Bonnet, rear lid

  • Unscrew the bolt -1-.
  • Insert the lever - U 30800- between the tank flap unit and the side plate in the area near to -arrow a-.

Bonnet, rear lid


Risk of damage to parts.

  • Using a flat screwdriver, apply pressure to the soft point marked with -arrow a- and remove the retaining clip.
  • Repeat the steps carried out for the other retaining clips (see arrows -b-, -c- and -d-).

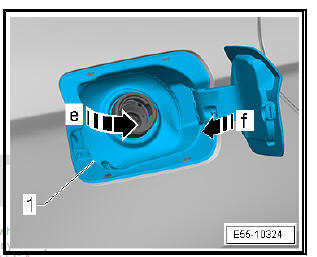

  • Remove the unit -1- from the rear side plate. For this purpose, first pull outwards -arrow e- and then pull to the left -arrow f-.


Bonnet, rear lid

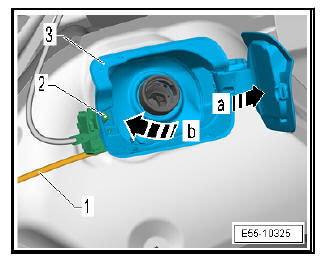

  • Guide the drain pipe -1- through the opening in the side plate through the rear wheel housing, without fixing it.
  • Have the opening of the unit -3- engage in the tank filler.
  • Engage the unit -3- in the side plate, when doing so, first guide in on the side of the hinge -arrow a-.
  • Then guide in the unit -3- in the direction of -arrow b-. Make sure not to damage the tank flap lock - V155- .-2-.
  • Screw in the cover and close the fuel tank flap.

Bonnet, rear lid

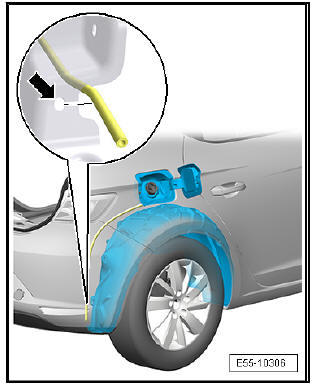

  • Engage the drain tube to the fixing on the wheel housing -arrow-.

Bonnet, rear lid

    Fuel tank lid unit
    Exploded view - tank flap unit - Tank filler flap locking motor - V155- - Fuel tank lid unit - Tank flap unit With securing tag - Trim panel Secured to cover of unit with ...

    Removing and installing filler neck compartment lid
    Special tools and workshop equipment required Release lever - 3409- Removing Open tank flap Insert - 3409- the lever into the recess and press the friction finger -1- in -arrow direct ...
