Seat Leon >> Removing and installing window guide

  • Removing
  • Installation
Caution

The following does not have to be removed to remove the window shaft seal of the front door:

  • Outer window slot seal

Removing

  • Front door glass: removal .
  • Remove the interior window well seal.
  • Remove the front door A-pillar outer trim .
  • Remove the front door B-pillar outer trim .

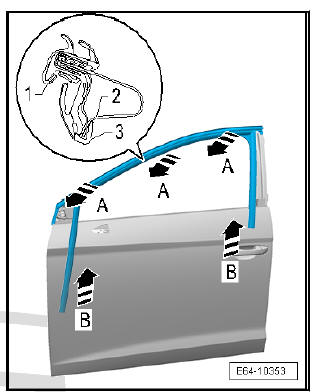

  • Release from inside the lip -3- of the door flange -2-.
  • Unfasten it starting at the back area and uniformly pull away the entire perimeter -Arrows a- of window guide -1-.
  • Remove the window shaft seal from the mount -arrow B-.

fitting

Front doors, door components, central locking

Note

The inner part of the window guide is metal. If it is bent or distorted, it cannot be straightened out any more and remains "wavy".

Therefore, the window guide must be inserted evenly without being bent.

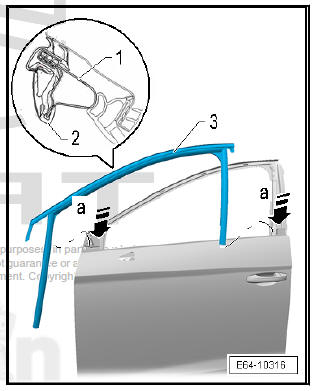

  • Installing window guide in its supports -Arrows a-.
  • Clip the window guide -3- evenly on the entire frame in the door flange.
  • Insert the sealing lip -2- of the guide on the door flange -1- .

Front doors, door components, central locking

Caution

Before mounting the door trims, the function of the manipulated components must be checked.

Note Take care of a uniform seating all around the window guide to prevent wind noise.
