Seat Leon >> Removing and installing subwoofer R211

SEAT Leon Service and Repair Manual / Communication / Communication / Sound system / Removing and installing subwoofer R211

removing

  • Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove the luggage compartment floor.

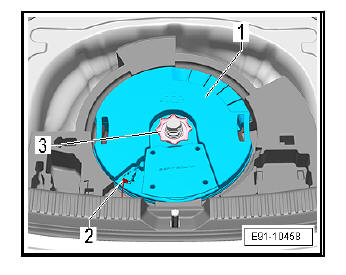

  • Release and unplug connector -2- at subwoofer - R211- -1-.
  • Remove bolt -3- on subwoofer - R211- -1-.
  • Lift subwoofer - R211- -1- upwards out of spare wheel well.

Communication

fitting

Installation is carried out in the reverse sequence.

Removing and installing centre loudspeaker

removing

  • Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

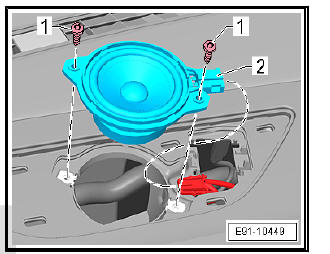

  • Remove loudspeaker grille from the dash panel .
  • Loosen bolts -1-.
  • Release and unplug connector at centre loudspeaker - R208- -2-.
  • Remove the centre loudspeaker - R208- -2- from the dash panel.

Communication

fitting

Installation is carried out in the reverse sequence.
