Seat Leon >> Self-adhesive, side emblems (3 and 5- door models): replacing
SEAT Leon Service and Repair Manual / General body repairs, exterior / Exterior equipment / Model badges and brand emblems / Self-adhesive, side emblems (3 and 5-
door models): replacing
Company badge "ITECH"

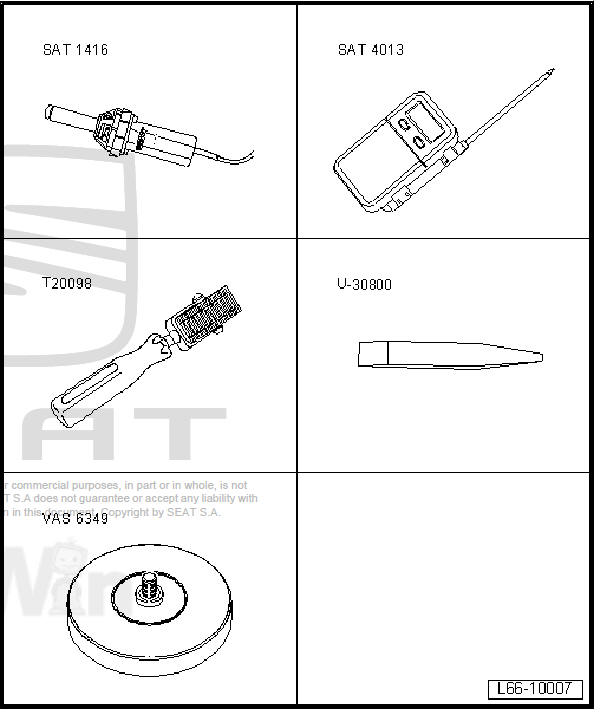

Special tools and workshop equipment required
- Hot-air blower - SAT 1416-
- Digital thermometer - SAT 4013-
- Thrust piece - T20098-
- Release lever - U 30800-
- Adhesive strip remover - VAS 6349-
Removing
- Heat the self-adhesive emblem to approx. 25ºC with the hot air blower - SAT 1416- .
- Unfasten the emblem with the help of the lever - U 30800- .
- Remove possible residual adhesive with the tool - VAS 6349- .
fitting
Note
- Do not remove the protective film of the self-adhesive emblem until the assembly work on the vehicle has been completed.
- If the emblem is installed for the first time on a new vehicle or on newly painted surfaces.
- The lettering must be bonded in place immediately after cleaning.
- Remove protective film just before the installation.
- Clean the area of the B-pillar where the new self-adhesive badge is to be applied with isopropanol or heptanes alcohol.
- Then treat the area where the new self-adhesive company badge should be applied using silicone cleaner.
- Allow to dry well.
- Heat up the contact area of the B-pillar with the hot air blower - SAT 1416- to approx. 35 ºC. Check the temperature using the digital thermometer - SAT 4013- .

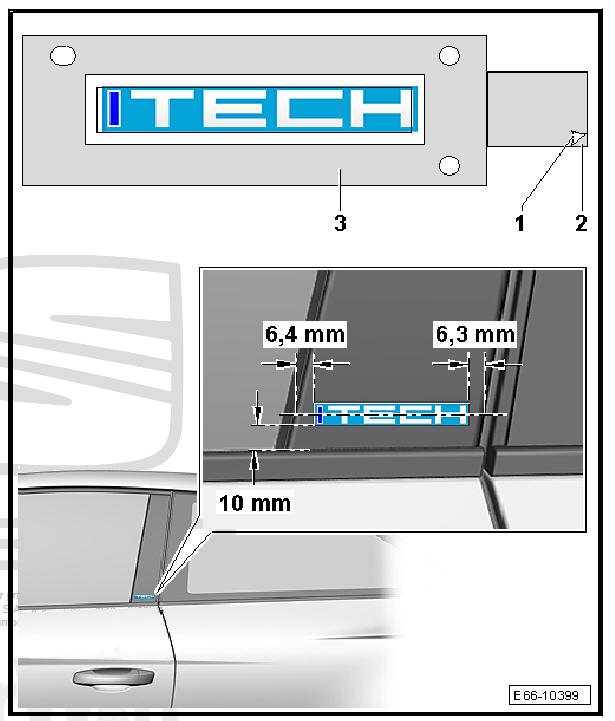

Continue for 3-door Leon only
- Remove the protective film -2- from the self-adhesive company emblem "ITECH".
- Apply the new self-adhesive emblem "ITECH" with spacing as shown in the illustration.
- Apply the self-adhesive company badge -3- and press down with pressure tool - T20098- with force of approx 5 kg.
- Remove the protective film -1- of the new self-adhesive emblem "ITECH".

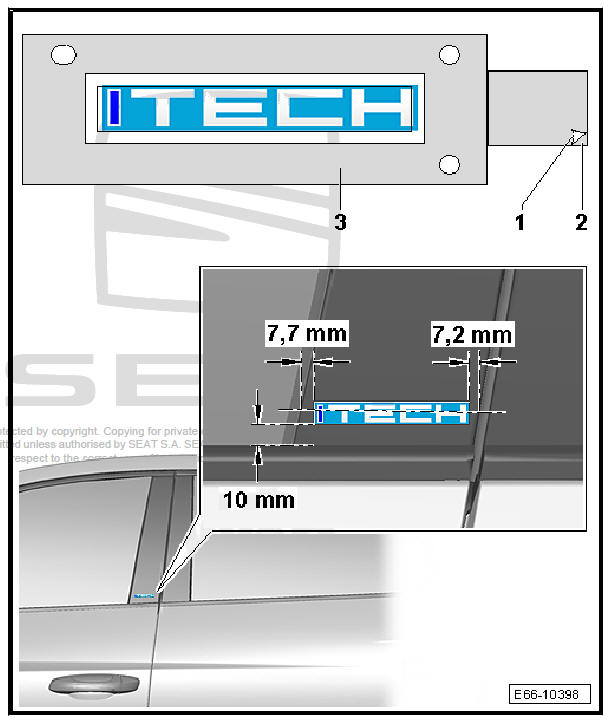

Continue for 5-door Leon only
- Remove the protective film -2- from the self-adhesive company emblem "ITECH".
- Apply the new self-adhesive emblem "ITECH" with spacing as shown in the illustration.
- Apply the self-adhesive company badge -3- and press down with pressure tool - T20098- with force of approx 5 kg.
- Remove the protective film -1- of the new self-adhesive emblem "ITECH".
