Seat Leon >> Overview of fitting locations - controls in dash panel

SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - interior / Controls / Overview of fitting locations - controls in dash panel

Lights, bulbs, switches - interior

  1. - Rotary light switch - EX1-
    • Removal and installation
  2. - Thumb wheel for headlight range control - E102-
    • Removal and installation
  3. - Key operated switch to deactivate airbag on front passenger side - E224-
    • Installation and removal
  4. - Glove compartment light switch - E26-
    • Removal and installation
  5. - Button in dash panel
    • Removal and installation

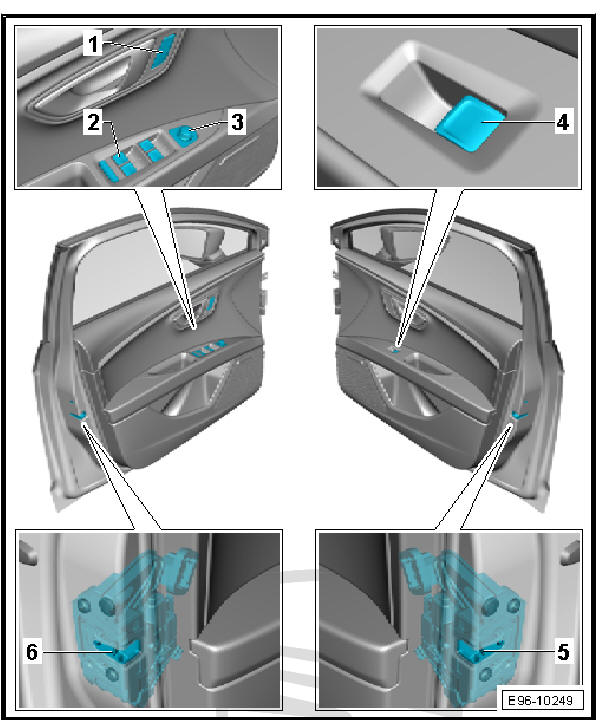

Overview of fitting locations - controls in front doors

Lights, bulbs, switches - interior

  1. - Interior door-locking button - E308-
    • Removal and installation
  2. - Operating unit for window regulator in driver door - E512-
    • Removal and installation
  3. - Mirror adjustment switch - E43- or adjustment switch for mirror with fold-in feature - E168-
    • Removal and installation
  4. - Window regulator switch in front passenger door - E107-
    • Removal and installation
  5. - Front passenger door contact switch - F3-
    • Removal and installation
  6. - Driver door contact switch - F2-
    • Removal and installation

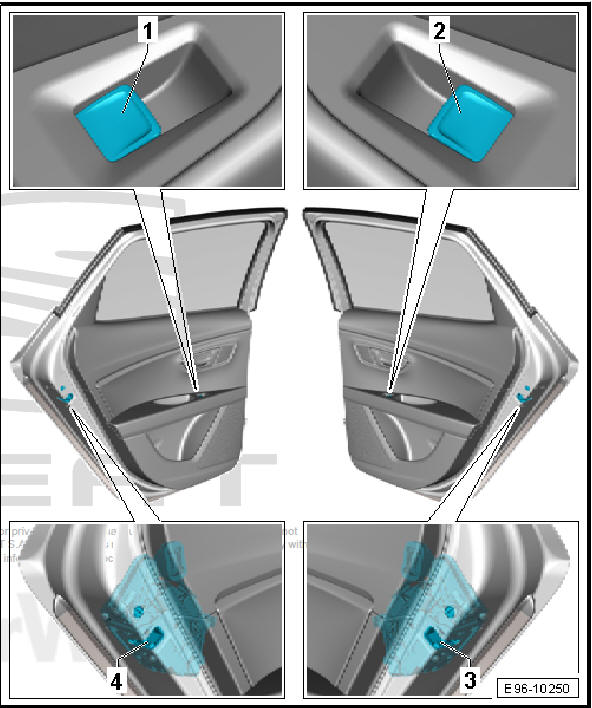

Fitting locations overview - controls in rear doors

Lights, bulbs, switches - interior

  1. - Rear driver side window regulator button - E711-
    • Removal and installation
  2. - Rear passenger side window regulator button - E713-
    • Removal and installation
  3. - Contact switch on back door, driver's side - F505-
    • Removal and installation
  4. - Contact switch on back door passenger side - F506-
    • Removal and installation

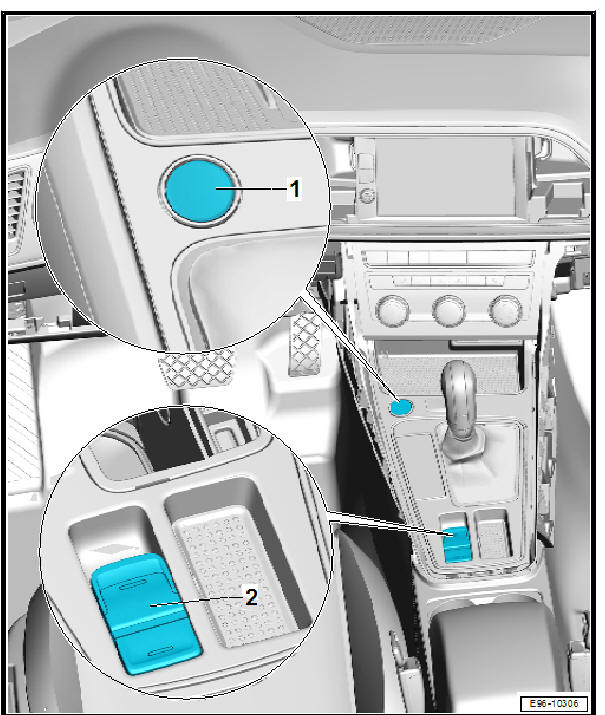

Overview of fitting locations - controls in centre console

Lights, bulbs, switches - interior

  1. - Starter button - E378-
    • Removal and installation
  2. - Electromechanical parking brake button - E538- / Autohold button - E540-
    • Removal and installation

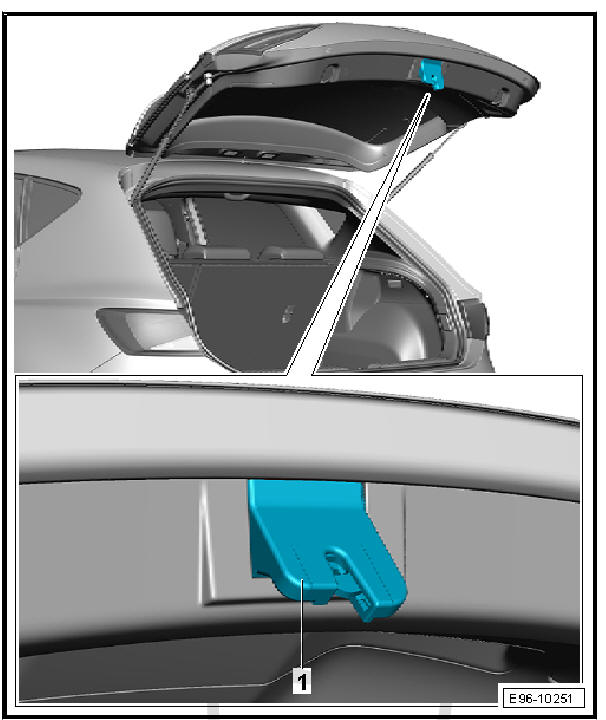

Overview of fitting locations - controls in luggage compartment

Lights, bulbs, switches - interior

  1. - Rear lid contact switch for anti-theft alarm - F123-
    • Removal and installation

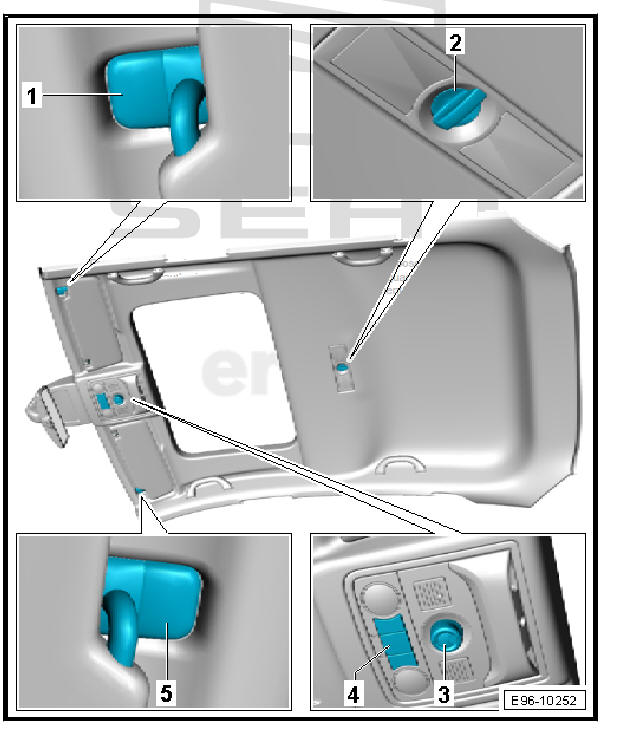

Overview of fitting locations - controls in roof trim

Lights, bulbs, switches - interior

  1. - Driver vanity mirror contact switch - F147-
    • Removal and installation
  2. - Rear interior light switch - W43-
    • Installed on the rear interior light - WX2-
    • Removal and installation
  3. - Sunroof button - E325-
    • Installed on the front roof module - WX3-
    • Removal and installation
  4. - Front roof module - WX3-
    • Removal and installation
  5. - Front passenger vanity mirror contact switch - F148-
    • Removal and installation
