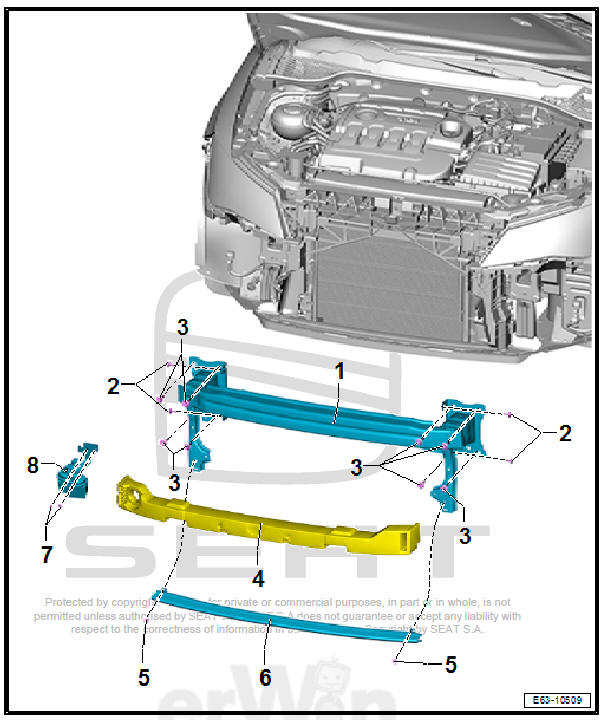

Impact bar - exploded view

Bumpers

  1. - Impact bar
  2. - Bolt.
    • 2 + 2 each
    • 8 Nm
  3. - Bolt.
    • 4 + 4 each
    • 55 Nm
  4. - Shock absorber
  5. - Bolt.
    • 2 off
    • 8 Nm
  6. - Protective support for pedestrians
  7. - Nut
    • 2 off
    • 13 Nm
  8. - Alarm horn
    • Removal and installation

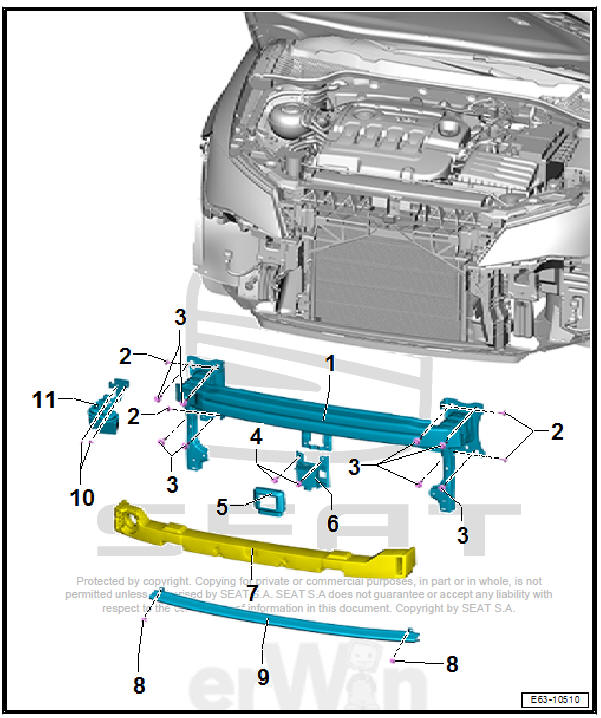

Impact bar, version with control unit for adaptive cruise control (ACC) - J428- - assembly overview

Bumpers

  1. - Impact bar
  2. - Bolt.
    • 2 + 2 each
    • 8 Nm
  3. - Bolt.
    • 4 + 4 each
    • 55 Nm
  4. - Bolt.
    • 2 off
    • 8 Nm
  5. - Cover
    • Removal and installation
  6. - Control unit for adaptive cruise control (ACC) - J428-
    • Removal and installation
    • Calibrate
  7. - Shock absorber
  8. - Bolt.
    • 2 off
    • 8 Nm
  9. - Protective support for pedestrians
  10. - Nut
    • 2 off
    • 13 Nm
  11. - Alarm horn
    • Removal and installation
