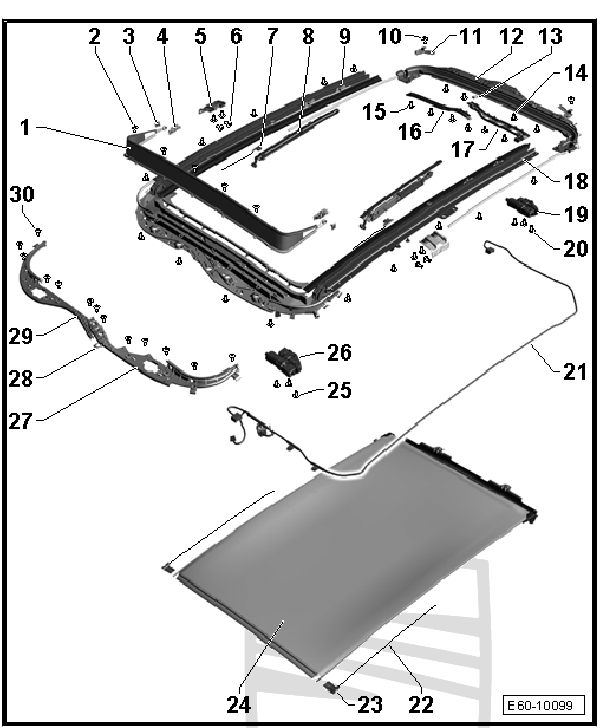

Seat Leon >> Assembly overview - Cranks and tilt mechanism

  1. - Wind deflector
    • Removing and fitting
  2. - Bolt.
    • For securing wind deflector
    • 5 off
    • 2 Nm
  3. - Sealing plug
  4. - Mounting
  5. - Support plate
    • 1 on each side
  6. - Bolt.
    • 4 on each side
    • 8+- 1 Nm
  7. - Cable for the tilt mechanism
    • Removing and fitting
  8. - Tilting mechanism
    • Removing and fitting
  9. - Guide rail with front part
    • Cannot be renewed individually
    • Part of the front part
  10. - Bolt.
    • For the cover
    • 2 Nm
  11. - Cover
    • Part of inner seal
  12. - Rear part
    • Removing and fitting
  13. - Spring plate
  14. - Bolt.
    • 18 off
    • 8+- 1 Nm
  15. - Bolt.
    • 7 off
    • 2 Nm
  16. - Cable cover
  17. - Cable cover
  18. - Bolt.
    • 2 on each side
    • 8 Nm
  19. - Motor for sun blind
    • Removing and fitting
    • Initialising
  20. - Bolt.
    • For securing sliding roof motor
    • 3 off
    • 5 Nm
  21. - Wiring harness
  22. - Cable for sun blind
    • Removing and fitting
  23. - Carriage
    • 1 on each side
  24. - Sun blind
    • Removing and fitting
  25. - Bolt.
    • For securing sliding roof motor
    • 3 off
    • 5 Nm
  26. - Sunroof motor
    • Removing and fitting
    • Initialising
  27. - Cable cover
  28. - Spring plate
  29. - Cable cover
  30. - Bolt.
    • 12 off
    • 2 Nm
    Assembly overview - panoramic sliding sunroof
    - Front glass panel Removing and fitting Adjusting - Bolts For front glass panel 6 off 5 Nm - Bolts For rear glass panel. 2 off 5 Nm - Exterior se ...

    Removing and installing front glass panel
    Removing Open glass panel -1- until trim -1- is accessible. Release locking lugs -4- by pressing -arrow B- on rear -3-. Pull trim -1- off downwards at rear end -arrow A-. Push trim forward ...
