Seat Leon >> Panoramic sliding roof normalisation run
SEAT Leon Service and Repair Manual / General body repairs, exterior / Sunroof / Panorama sliding roof / Panoramic sliding roof normalisation run
Note
- After renewal of glass panel, motor, tilting mechanism or sun blind, a normalisation run must be carried out for the corresponding drive.
- Roll-back function is switched off when establishing reference points.
Establishing reference points of sliding sunroof motor
Ignition is switched on.
Rotary switch must be in "Sliding sunroof closed" position.

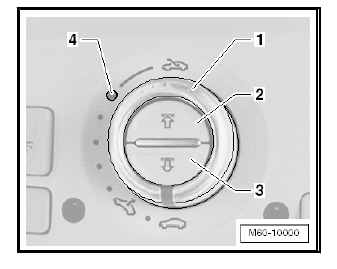

- Pull rotary switch -1- downwards and hold during whole process to establish reference points (approx. 20 s) in this position.
- When establishing reference points, glass panel first closes and then moves approx. 200 mm towards the rear.
- After glass panel is closed again, establishment of reference points is finished and rotary switch must be released.
Establishing reference points for sun blind motor
Ignition is switched on.

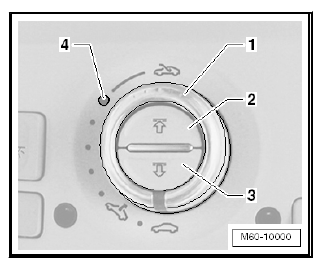

- Press "Close push button for sun blind" -3- and hold down.
Keep in this position during the entire standardisation process (about 20 seconds).
- When establishing reference points, sun blind first closes and then moves approx. 200 mm towards the rear.
- After sun blind has been closed completely again, normalisation run is finished and actuation button can be released.
