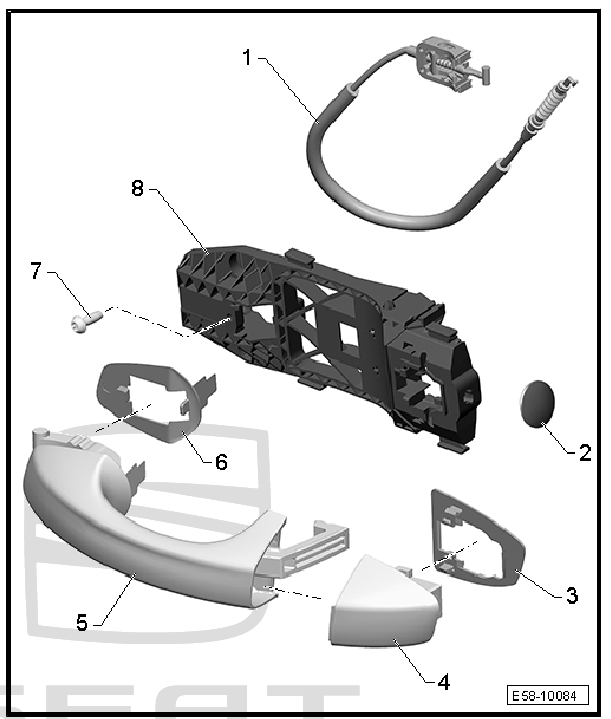

Exploded view - door handle and door lock (part I)

  1. - Cable for the outside handle (back door)
    • Bowden cable
  2. - Anti-jam protection
    • 1x
    • Stuck to door panel
  3. - Backing plate (rear)
    • For the seat of the outside handle lock cover
  4. - Cover for the lock of the outside handle (back door)
    • Fixed via the locking bar on the mount of the outside handle
  5. - Outside handle (back door)
  6. - Backing plate (front)
    • For the seat of the outside handle
  7. - Bolt.
    • 1x
    • 1.7 Nm
  8. - Mount for the outside handle (back door)

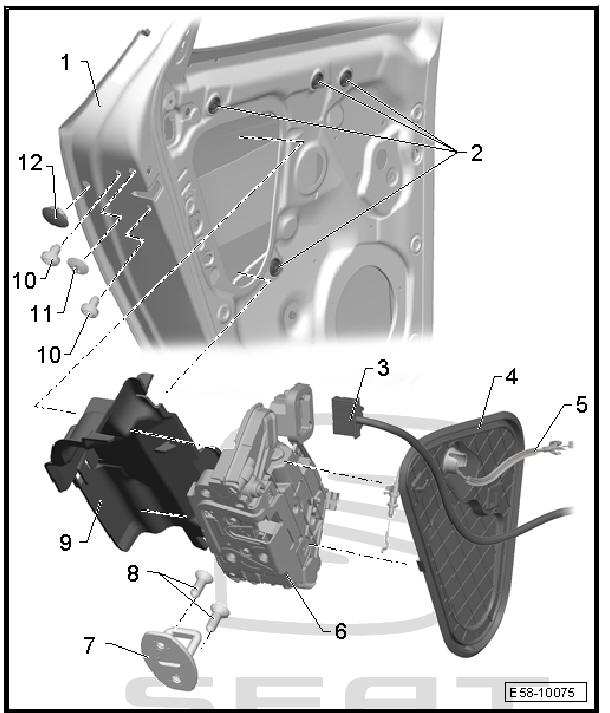

Exploded view - door handle and door lock (part II)

Rear doors, door components

  1. - Rear door
  2. - Sealing plug
    • 4 off
  3. - Door lock connector
  4. - Inside protective cover
  5. - Cable for the inside handle (back door)
    • Bowden cable
  6. - Lock (back door)
  7. - Striker plate
    • With plastic base
  8. - Bolt.
    • 2 off
    • 24 Nm
  9. - Cover
    • Removing and fitting
  10. - Bolt.
    • 2 off
    • With washer
    • 19 Nm
  11. - Sealing plug
    • 1x
  12. - Sealing plug
    • 1x
