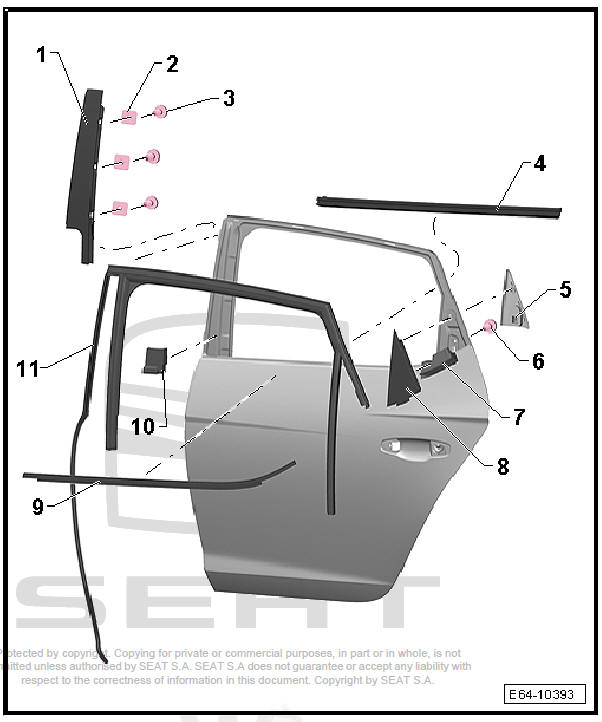

Seat Leon >> Exploded view - door components

Rear doors, door components

  1. - Rear door B-pillar outer trim
  2. - Spreader block
    • 3 off
  3. - Bolt.
    • 3 off
  4. - Interior window well joint
    • Removing and fitting
  5. - Rear door C-pillar inner trim
    • Fixed to the door
    • With two fixing clips and damping foam
    • Removing and fitting
  6. - Bolt.
    • For attaching the trim
    • 2.5 Nm
  7. - Insulating foam
  8. - Rear door C-pillar outer trim
    • Fixed to the door
    • Removing and fitting
  9. - Outer window slot seal
  10. - Seal
    • Glued to the door
  11. - Window guide (rear door)
    • Removing and fitting

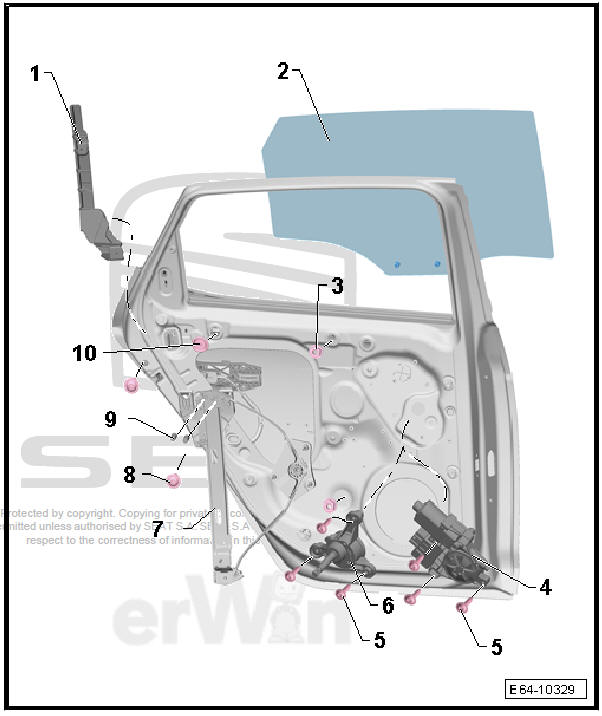

Exploded view - window regulator

Rear doors, door components

  1. - Window guide bracket
  2. - Rear door glass
  3. - Nut
    • 2 off
    • 6 Nm
  4. - Electric window riser motor
    • With controller mounted in the motor
  5. - Bolt.
    • 3 off
    • 3.5+- 0.5 Nm
  6. - Manual actuating mechanism
    • Only for mechanical window riser
  7. - Window regulator
  8. - Bolt.
    • 2 off
    • 3.5 Nm
  9. - Window mounts
    • 2 off

Comprising:

  • Expanding grommet
  • Expanding bolts
  1. - Sealing plug
    • 4 off
    Exploded view - door handle and door lock
    Exploded view - door handle and door lock (part I) - Cable for the outside handle (back door) Bowden cable - Anti-jam protection 1x Stuck to door panel - Backing plate ...
