Seat Leon >> Removing and installing window regulator motor
SEAT Leon Service and Repair Manual / General body repairs, exterior / Rear doors, door components / Door components / Removing and installing window regulator
motor
Special tools and workshop equipment required

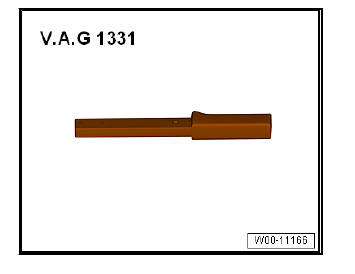

- Torque wrench - V.A.G 1331-
- Removing
- Installation
Removing
- Remove interior trim of back door: Front door trim: removing and installation; back door trim: removing and installation.
- Secure door window against sliding down with adhesive tape.

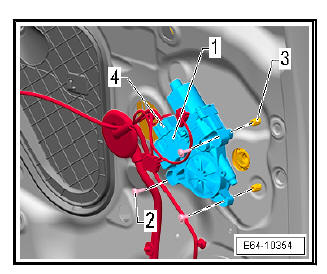

- Clip out and remove the plug connector from the shaft -4-.
- Remove screws -2-.
- Remove the window lifter motor -1- from the mount -3-.
fitting
Fit in reverse order from removal, remembering the following:
- Insert the window lifter motor -1- into the supports -3-. Move door window up and down slightly so that the splines between motor and cable drum engage more easily.
- Use the tightening torque of the screws.
