Seat Leon >> Removing and installing window regulator motor

Special tools and workshop equipment required

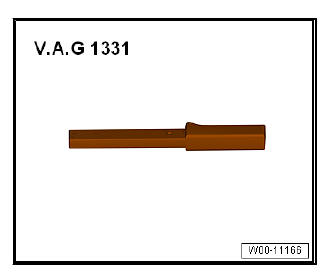

  • Torque wrench - V.A.G 1331-

Front doors, door components, central locking

  • Removing
  • Installation

Note The control unit of the front door is fixed in the door frame.

Removing

  • Removing interior trim of front door.
  • Secure door window against sliding down with adhesive tape.

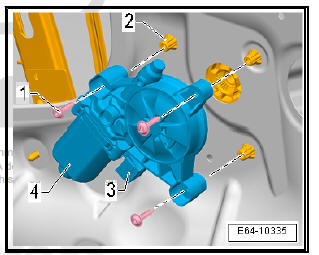

  • Clip out and remove the plug connector of the shaft -3-.
  • Remove screws -1-.
  • Remove the window lifter motor -4- from the mount -2-.

Front doors, door components, central locking

fitting

Fit in reverse order from removal, remembering the following:

  • Insert the window lifter motor -1- into the supports -3-. Move door window up and down slightly so that the splines between motor and cable drum engage more easily.
  • Use the tightening torque of the screws .
  • Undertake the synchronisation and storage of the window course
