Seat Leon >> Removing and installing door seal (outer)
SEAT Leon Service and Repair Manual / General body repairs, exterior / Front doors, door components, central locking / Door / Removing and installing door seal (outer)

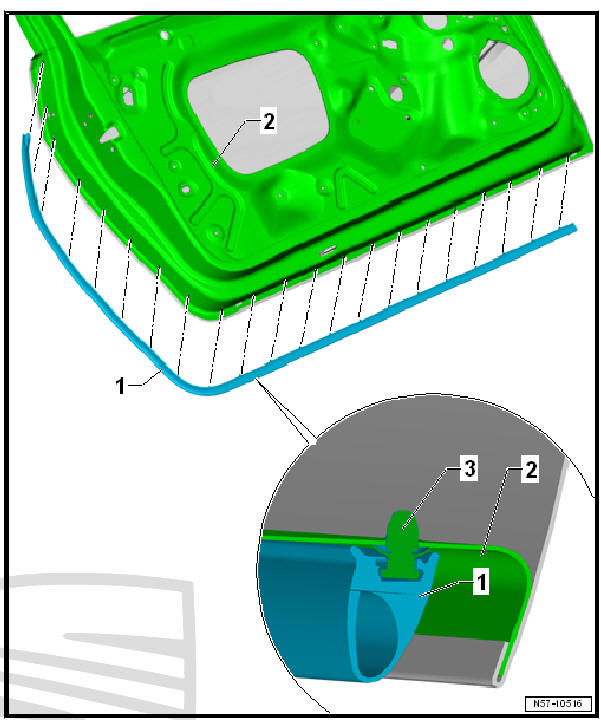

Removing and installing door outer seal, 4-door model

Removing
- Pull door seal -1- off door -2- together with the clips -3-.
fitting
- Check clips -3- for damage and renew if necessary.
- Press door seal -1- on door -2- together with the clips -3-.
The clips -3- need to be pressed in until stop.

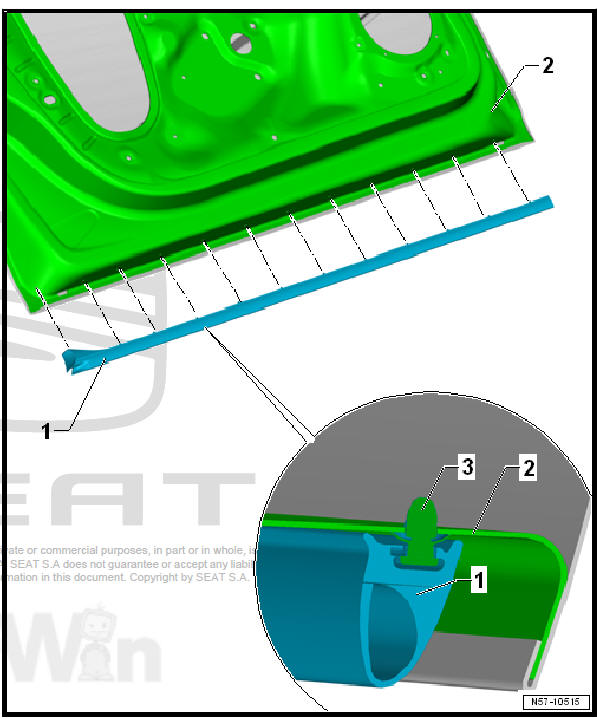

Removing and installing door outer seal, 2-door model

Removing
- Pull door seal -1- off door -2- together with the clips -3-.
fitting
- Check clips -3- for damage and renew if necessary.
- Press door seal -1- on door -2- together with the clips -3-.
The clips -3- need to be pressed in until stop
Removing and installing inner door seal
Seal for front door: remove
Front door seal: Fitting
Special tools and workshop equipment required
Release lever - U 30800-
Thrust piece - T20098-
Remove front door seal
Note
The ...
Removing and installing door
Special tools and workshop equipment required
Torque wrench - V.A.G 1331-
Note
The sequences below describe the processes for removal and
installation for the left side of the vehicle. The ...
