Seat Leon >> Position light, fog light and reverse light on the tailgate

SEAT Leon Owner's Manual / Tips and Maintenance / If and when / Bulb change / Position light, fog light and reverse light on the tailgate

Fig. 171 Lights on the

Fig. 171 Lights on the tailgate

Fig. 171 Lights on the

Fig. 171 Lights on the tailgate

– Open the tailgate.

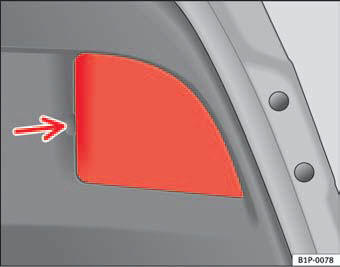

– Pull the cover off. See the arrow  fig. 171.

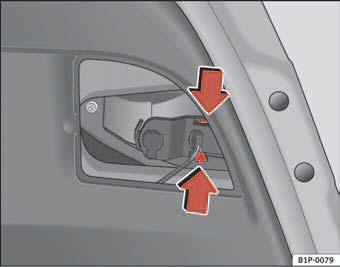

– Take the lampholder out pressing on the securing pins and extract it outwards 􀂟 page 244, fig. 172.
– Replace the faulty lamp, rotating it to the left and outwards.
– Installation is done in the reverse order.
