Seat Leon >> Side indicators

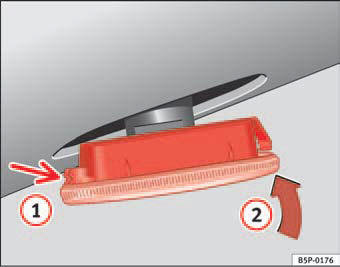

Fig. 173 Indicator
– Press the indicator on one of its sides to take it out.
– Remove the lamp holder from the indicator.
– Remove the failed glass bulb and replace with a new bulb.
– Insert the lamp holder in the indicator guide until it clicks into
place.
– First place the indicator in the opening in the bodywork, fixing
the tabs fig. 173, arrow 1.
– Insert the lamp as shown by the arrow 2 fig. 173.
