Seat Leon >> Luggage compartment cover

Fig. 105 Luggage

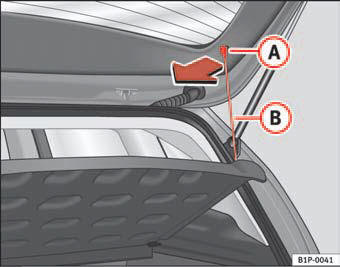

Fig. 105 Luggage compartment cover

Removing the cover
 – Disengage the loops  fig. 105 B  from the retaining pins A.
– Extract the cover from its slot, in its rest position and pull outwards.

WARNING

Do not place heavy or hard objects on the luggage compartment cover, this will endanger the vehicle occupants in case of sudden braking.

Note
 • Ensure that, when placing items of clothing on the luggage compartment cover, rear visibility is not reduced.

    Stowing luggage
    All luggage must be securely stowed. Please observe the following points to ensure the vehicle handles well at all times: – Distribute the load as evenly as possible. – Place heavy objects as ...

    Roof carrier*
    Please observe the following points if you intend to carry loads on the roof: • For safety reasons, only luggage racks and accessories approved by SEAT should be used. • It is imperative to pre ...
