Seat Leon >> Fuel gauge  and reserve indicator

SEAT Leon Owner's Manual / Operating instructions / Cockpit / Instruments / Fuel gauge  and reserve indicator

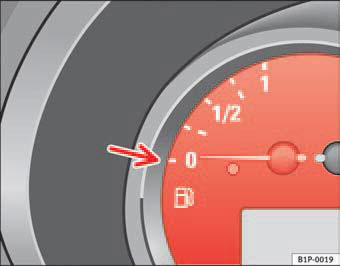

Fig. 33 Details of the

Fig. 33 Details of the instrument panel: Fuel gauge

Details of the instrument panel: Fuel gauge

The fuel tank has a capacity of approx. 55 litres.

When the needle reaches the reserve zone  fig. 33 (arrow), the warning lamp will light and an acoustic signal will sound reminding the driver to refuel. At this point there are still about 7 litres of fuel in the tank.

The following text appears in the instrument panel display3) PLEASE REFUEL*
