Seat Leon >> Instrument overview

The instruments display the vehicle operating status.

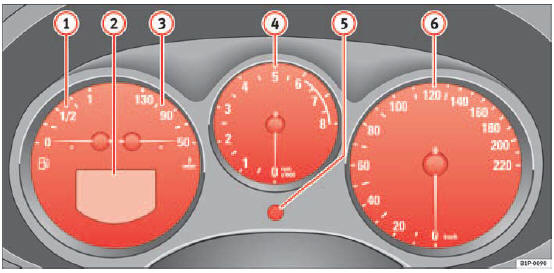

Fig. 32 Detail of the dash panel: Instruments

Fig. 32 Detail of the dash panel: Instruments

Detail of the dash panel: Instruments

1 Fuel gauge
2 Multi-function display
3 Engine coolant temperature gauge
4 Rev counter
5 Time adjustment button / trip recorder reset button
6 Speedometer

    Fuel gauge  and reserve indicator
    Fig. 33 Details of the instrument panel: Fuel gauge Details of the instrument panel: Fuel gauge The fuel tank has a capacity of approx. 55 litres. When the needle reaches the reserve zone&nbs ...
