Seat Leon >> Transport of gearbox
SEAT Leon Service and Repair Manual / 5-speed manual gearbox 0AH / Controls, housing / Transport of gearbox
Special tools and workshop equipment required

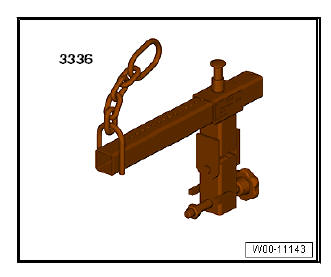

- Gearbox lifting tackle - 3336-

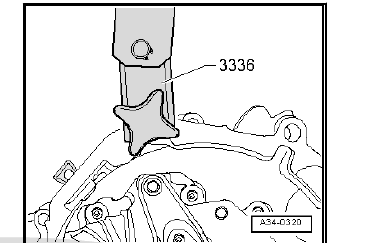

- Bolt gearbox lifting tackle - 3336- to clutch housing.

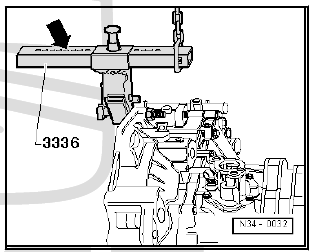

- Adjust support beam on sliding piece using locking pin -arrow-.
No. of holes visible = 5
- Take up gearbox with workshop hoist and gearbox lifting tackle - 3336- .
- Set down gearbox as required (for example in transport container)
