Seat Leon >> Removing and installing sliding sunroof adjustment control unit - J245-
SEAT Leon Service and Repair Manual / General body repairs, exterior / Sunroof / Sun roof / Removing and installing sliding sunroof
adjustment control unit - J245-
Removing
Note If you must remove a defective engine while the panoramic window is closed, please proceed as described.
- Remove the cover of the roller blind.
- Disconnect the electrical plug connector from the engine.

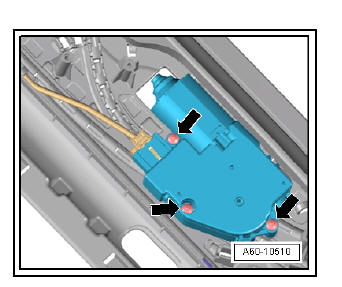

- Remove the screws -arrows- and the engine from its seat by lifting it up.
fitting
Fit in reverse order from removal, remembering the following:
Note When removing the engine, the retaining tabs -1- may loosen.
- Before mounting the engine, install the retaining tab correctly to the frame of the actuating mechanism.
- Use the tightening torque of the screws
WARNING
|
- Check that the slide/tilting sunroof is functioning properly.
