Seat Leon >> Assembly mountings

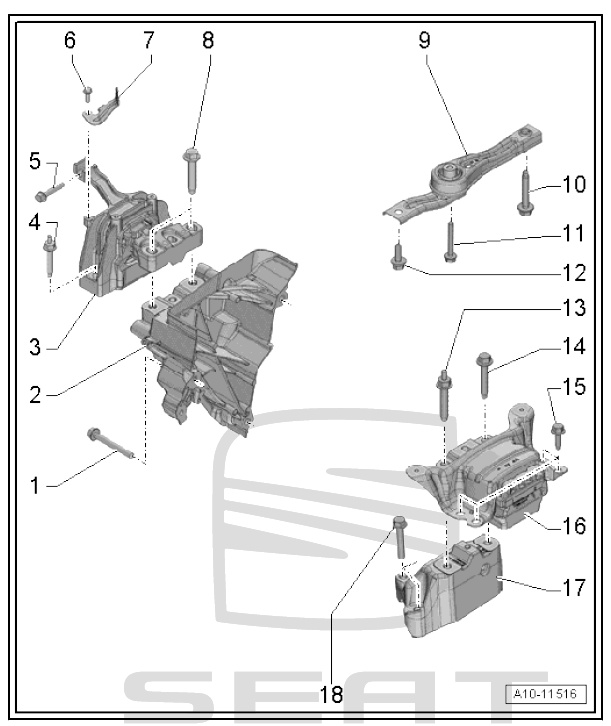

Exploded view - assembly mountings

  1. - Bolt
  2. - Engine support
  3. - Engine support.
  4. - Bolt
  5. - Bolt
  6. - Bolt
  7. - Support bracket
  8. - Bolt
  9. - Pendulum support
  10. - Bolt
  11. - Bolt
  12. - Bolts
  13. - Bolt
    • Must be renewed if removed
    • 60 Nm + +90º
  14. - Bolt
    • Must be renewed if removed
    • 60 Nm + +90º
  15. - Bolt
  16. - Gearbox mounting
  17. - Gearbox support
  18. - Bolt
    • Must be renewed if removed
    • 3 Units
    • 40 Nm + +90º
