Removing and installing electronically controlled damping control unit - J250- , saloon

Special tools and workshop equipment required

  • Vehicle diagnosis tester

Removing

Location: electronically controlled damping control unit - J250- is installed behind left side panel trim in luggage compartment.

  • Disconnect earth strap from battery .
  • Pull out ignition key.
  • Remove left side panel trim in luggage compartment .

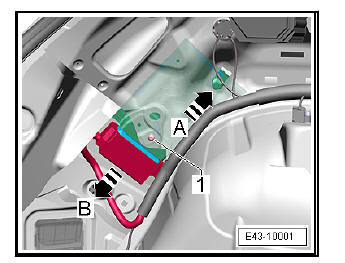

  • Unscrew bolt -1-.
  • Remove the control unit in -the direction of arrow- -A- and -B-.

Self-levelling suspension

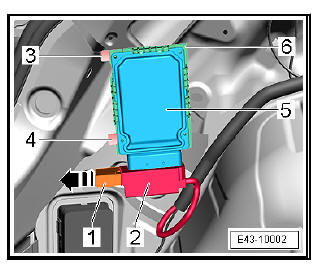

  • Release release lever -1- in -direction of arrow-.
  • Unplug the electrical connector -2-.
  • Press lugs -3- and -4- to rear.
  • Slide electronically controlled damping control unit - J250- -5- downward out of retainer -6-.

Self-levelling suspension

Installing

Carry out installation in the reverse sequence, noting the following:

  • Function Replace control unit must be performed with - Vehicle diagnostic tester if electronically controlled damping control unit - J250- has been renewed.
  • If the reference position has been re-adapted, the front camera for driver assist systems must be recalibrated on vehicles with lane departure warning function

Removing and installing electronically controlled damping control unit - J250- , ST

Special tools and workshop equipment required

  • Vehicle diagnosis tester

Removing

Location: electronically controlled damping control unit - J250- is installed behind left side panel trim in luggage compartment.

  • Disconnect earth strap from battery .
  • Remove luggage compartment side panel trim .

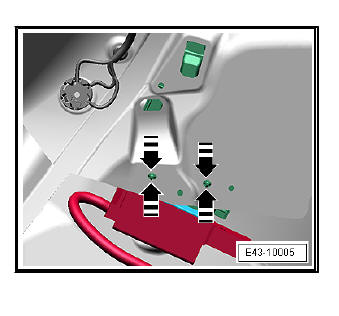

  • Release lugs -arrows-.
  • Pull the support from its installation position.

Self-levelling suspension

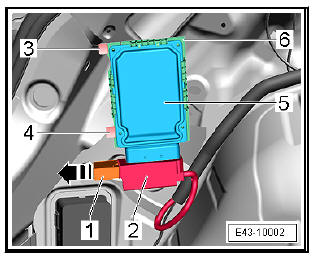

  • Release release lever -1- in -direction of arrow-.
  • Unplug the electrical connector -2-.
  • Press lugs -3- and -4- to rear.
  • Slide electronically controlled damping control unit - J250- -5- downward out of retainer -6-.

Self-levelling suspension

Installing

Carry out installation in the reverse sequence, noting the following:

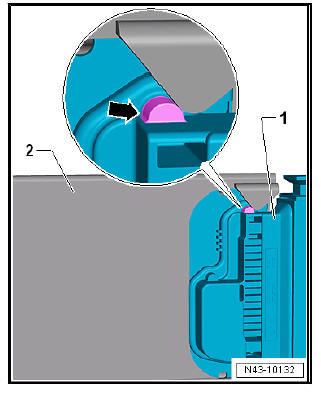

  • Push control unit -1- into bracket -2- until lug -arrow- engages in retainer.
  • Function Replace control unit must be performed with - Vehicle diagnostic tester if electronically controlled damping control unit - J250- has been renewed.
  • If the reference position has been re-adapted, the front camera for driver assist systems must be recalibrated on vehicles with lane departure warning function.
