Seat Leon >> Multi-purpose additive for petrol fuels: add

SEAT Leon Service and Repair Manual / Maintenance / Description of work / Multi-purpose additive for petrol fuels: add

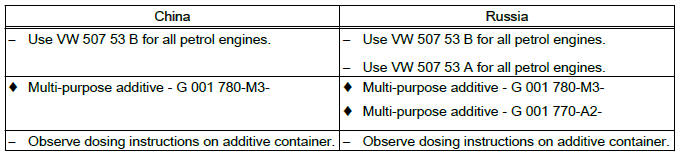

NOTICE Only applicable for Chinese and Russian market.

Use only additives in accordance with the standards VW 507 53 A or VW 507 53 B.

Observe the dosing instructions on the additive container.

After adding the additive, always recommend the customer to fill up the tank completely in order for the additive to be the most effective.

  • Fill multi-purpose additive for petrol fuels into regular fuel tank during each service.


Brake system: check for leaks and damage

Check for possible leaks and damage in the following components:

  • Brake master cylinder
  • Brake servo (in the ABS: hydraulic unit)
  • Brake pressure regulator and
  • Brake calliper
  • Ensure that brake hoses are not twisted.
  • When turning the steering wheel to its limits, ensure that the brake hoses do not come into contact with any vehicle part.
  • Check brake hoses for porosity and ruptures.
  • Check brake hoses and lines for chafing.
  • Check correct seating of the connections and fittings, as well as signs of corrosion and possible leaks.

Detected faults must be rectified (equivalent to a repair measure).

    Engine oil: checking levels
    Preconditions: Engine oil temperature min. 60 ºC Vehicle standing on a flat surface After shutting off engine, wait at least 3 minutes so that the oil can flow back into the sump.   ...

    Thickness of brake pads and condition of brake discs, front and rear: Check
    Special tools and workshop equipment required Torque wrench - V.A.G 1332- Electric hand torch and mirror Carry out the following work steps: The adapter to loosen and tighten anti-thef ...
