Seat Leon >> Dismantling and assembling heater and air conditioning unit
SEAT Leon Service and Repair Manual / Heating and air conditioning / Air conditioning system / Front heater and air conditioning unit / Dismantling and assembling heater and
air conditioning unit
Note
- There are different designs and makes of heater and air conditioning unit. The individual components of the various heaters and air conditioning units are similar but not identical. The combined fitting of different makes of component is therefore not permissible.

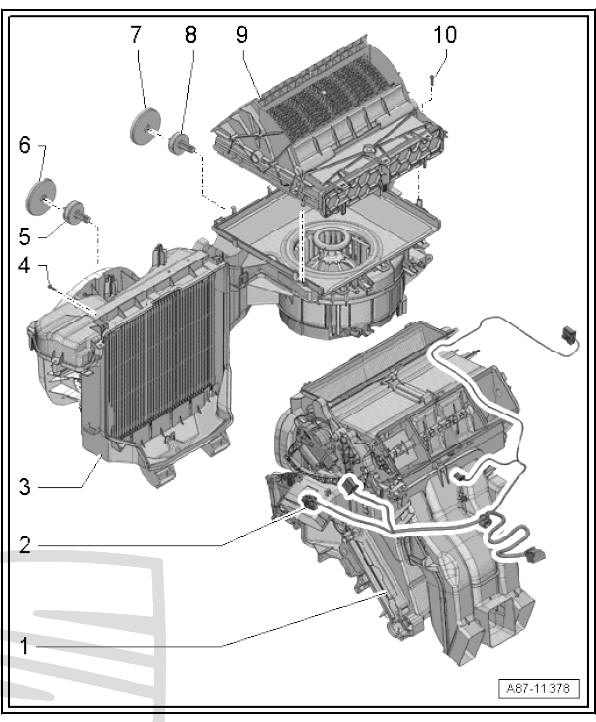

- The following illustrations show a "Valeo" heater/air conditioning unit, distinguishing features with respect to other makes.
- - Air distribution housing
- Different versions
- The combined fitting of different makes of component is not permissible
- The following illustrations show the heater from "Valeo"
- With or without auxiliary air heater element - Z35- , depending on equipment
- Distinguishing manufacturer
- Removing and fitting
- - Wiring harness
- - Evaporator housing
- Assembly overview
- - Bolt.
- 3 off
- 1 Nm
- - Bracket (left-side)
- Removing and fitting
- - Nut
- 4.5 Nm
- - Nut
- 4.5 Nm
- - Bracket (right-side)
- Removing and fitting
- - Air intake box
- Assembly overview
- - Bolt.
- Tightening torque
