Seat Leon >> Navigation system

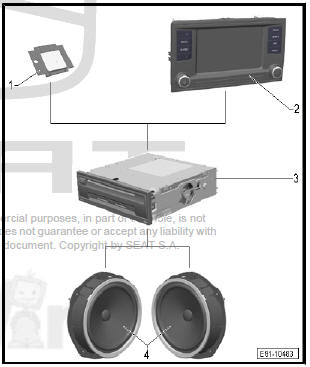

Overview - navigation system

  1. - GPS aerial - R50- in the centre of the dash panel
  2. - Display unit for front information display and operating unit control unit - J685- in the centre of the dash panel
  3. - Control unit 1 for information electronics - J794-
  4. - Sound systems

Communication

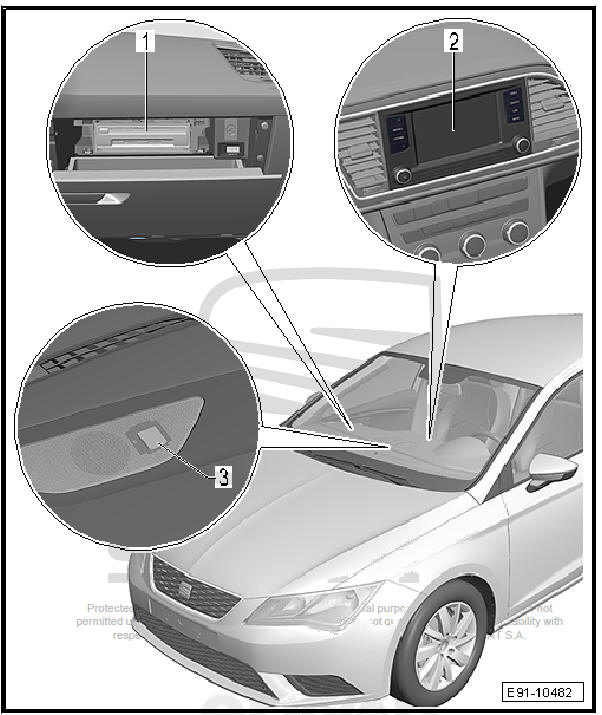

Location overview - navigation system

Communication

  1. - Control unit 1 for information electronics - J794-
    • Removal and installation
  2. - Display unit for front information display and operating unit control unit - J685-
    • Removal and installation
  3. - GPS aerial - R50-
    • Removal and installation
