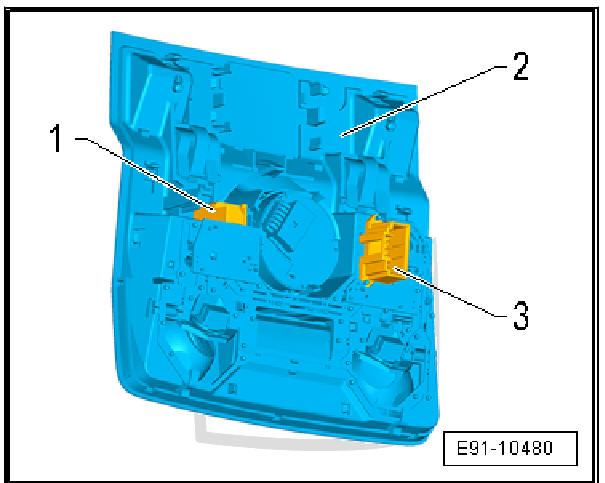

Exploded view - Microphone unit , vehicles without anti-theft alarm
- - Telephone microphone -
R38-
- Removal and installation
- - Front interior light - W1- housing.
- - Front interior light - W1-
- Removal and installation

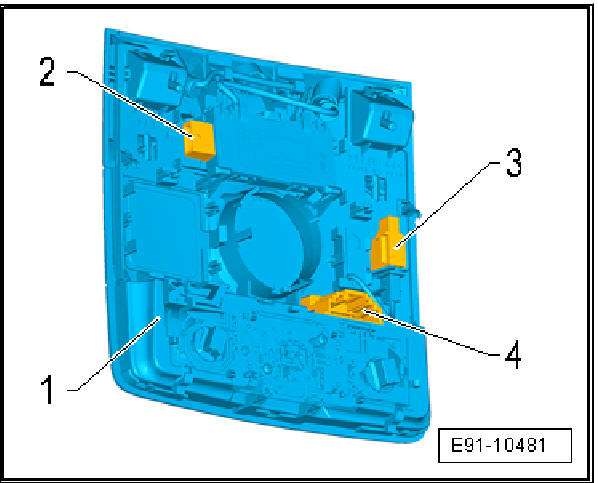

Exploded view - Microphone unit , vehicles with anti-theft alarm
- - Front interior light - W1- housing.
- - Interior monitoring sensor - G273-
- - Telephone microphone -
R38-
- Removal and installation
- - Front interior light - W1-
