Seat Leon >> Removing and installing telephone microphone - R38-

SEAT Leon Service and Repair Manual / Communication / Communication / Telephone system / Removing and installing telephone microphone - R38-

Telephone microphone - R38- : Removal and installation, vehicles without antitheft alarm system

removing

  • Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove front interior light - W1-.

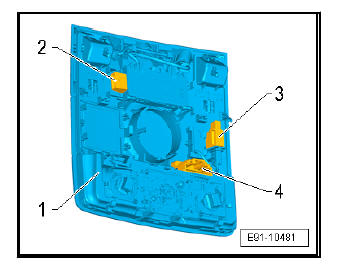

  • Release and pull off plug connectors -1- of the Telephone microphone - R38- .
  • Lever out the telephone microphone - R38- -1- from the housing of the front interior light - W1- -2-.

fitting

Installation takes place in reverse order.

Communication

Telephone microphone - R38- : Removal and installation, vehicles with antitheft alarm system

removing

  • Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove the front interior light - W1- .

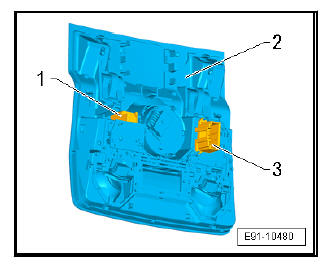

  • Release and pull off plug connectors -3- of the Telephone microphone - R38- .
  • Lever out the telephone microphone - R38- -3- from the housing of the front interior light - W1- -1-.

fitting

Installation takes place in reverse order.

Communication

Remove and install mobile charging cradle - R265-

removing

  • Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove centre console cover.

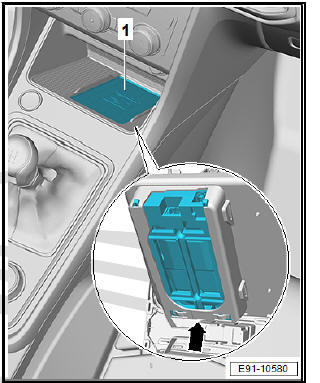

  • Insert flat screwdriver as shown -arrow- and loosen the fastening of the mobile charging cradle - R265- -1-.
  • Pull out the mobile charging cradle - R265- -1- from the centre console cover.

fitting

Installation takes place in reverse order.

Communication

    Assembly overview - microphone unit
    Exploded view - Microphone unit , vehicles without anti-theft alarm - Telephone microphone - R38- Removal and installation - Front interior light - W1- housing. - Front interior ...

    Remove and install control unit for stabilising the transmission and reception quality - R308-
    Remove and install control unit for stabilising the transmission and reception quality - R308- , León / León SC removing Switch off ignition and all electrical equipment. Vehicles without ...
