Seat Leon >> Removing and installing GPS aerial

Special tools and workshop equipment required

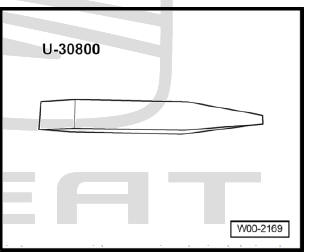

  • Release lever - U30800-

Communication

removing

  • Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

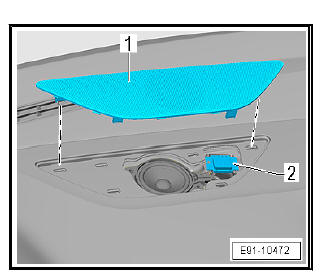

  • Remove loudspeaker grille from the dash panel -1- .
  • Undo the GPS aerial - R50- -2- with the wedge - U30800- .
  • Release and detach the plug connection on the GPS aerial - R50- -2-.

fitting

Installation takes place in reverse order.
