Seat Leon >> Removing and installing amplitude modulation (AM) R177 frequency filter

SEAT Leon Service and Repair Manual / Communication / Communication / Aerial systems / Removing and installing amplitude modulation (AM) R177 frequency filter

removing

  • Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Removing lower interior tailgate panel .

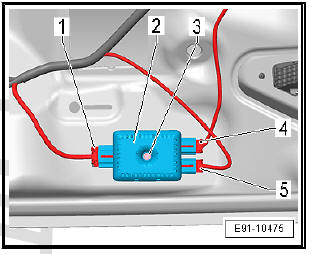

  • Unlock and remove the connectors -1- , -4- and -5- of the Frequency filter for the amplitude modulation (AM) - R177- -2-.
  • Unscrew bolt -3- and remove Frequency filter for the amplitude modulation (AM) - R177- -2- from rear lid.

fitting

Installation is carried out in the reverse sequence.

Communication

Removing and installing frequency modulation (FM) frequency filter R178 / R179

Note Removal and installation of frequency modulation (FM) frequency filter in negative wiring - R178- are described for the left side. Removal and installation of frequency modulation (FM) frequency filter in positive wiring - R179- for the right side are carried out in the same way.

Special tools and workshop equipment required

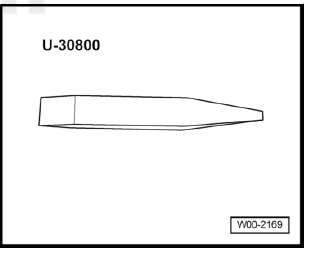

  • Release lever - U30800-

removing

  • Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove the top tailgate trim.

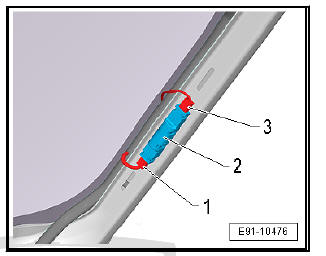

  • Unlock and remove the connectors -1- and -3- of the Frequency modulation (FM) frequency modulation in negative wire - R178- -2-.
  • Removing the frequency modulation (FM) frequency filter in negative wire - R178- -1- using the wedge - U30800- .

fitting

Installation takes place in reverse order.

Communication

    Removing and installing aerial amplifier
    Removing and installing aerial amplifier, R24 removing Switch off ignition and all electrical equipment. Vehicles without access and start authorisation system Remove ignition key, if fit ...

    Removing and installing GPS aerial
    Special tools and workshop equipment required Release lever - U30800- removing Switch off ignition and all electrical equipment. Vehicles without access and start authorisation system ...
