Seat Leon >> Layout - infotainment system

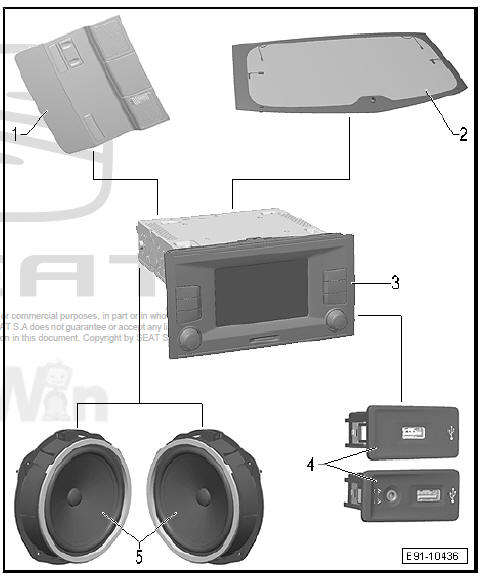

Structure - Infotainment system, versions without control unit 1 for information electronics - J794-

Communication

  1. - Telephone microphone - R38- in front interior light - W1-
  2. - Window aerial in rear window
  3. - Radio - R-
  4. - Connection for external audio sources - R199- o interface for external multimedia devices - R215-
  5. - Sound systems

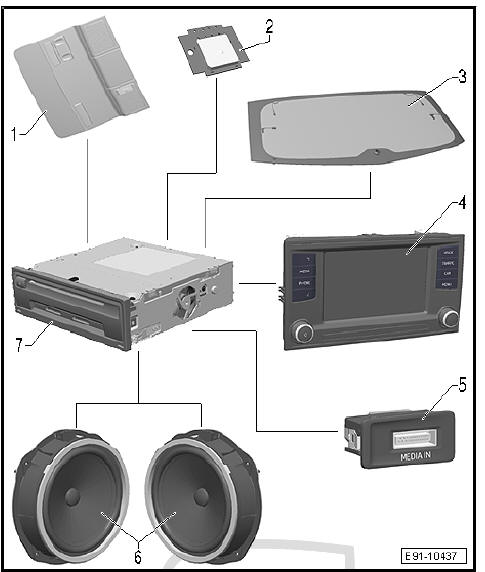

Structure - Infotainment system, versions with control unit 1 for information electronics - J794-

Communication

  1. - Telephone microphone - R38-
  2. - GPS aerial - R50-
  3. - Window aerial in rear window
  4. - Display unit for front information display and operating unit control unit - J685-
  5. - Connection for external audio sources - R199- o interface for external multimedia devices - R215-
  6. - Sound systems
  7. - Control unit 1 for information electronics - J794- , in glove box

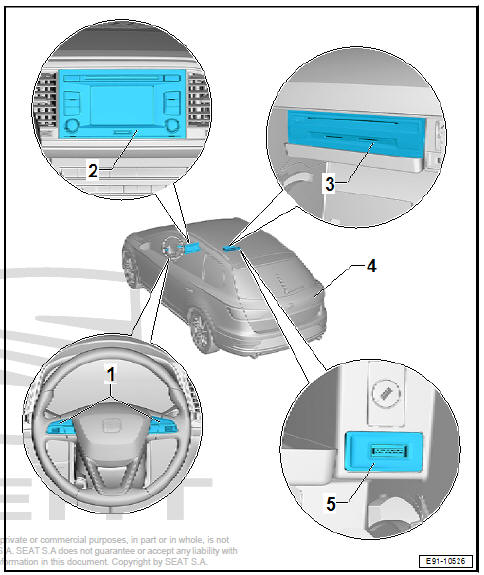

Location overview - Infotainment system

Communication

  1. - Multifunctional buttons on steering wheel,
    • Multifunction buttons on left in steering wheel - E440-
    • Multifunction buttons on right in steering wheel - E441-
    • Removal and installation
  2. - Display unit for front information display and operating unit control unit - J685-
    • Infotainment system, versions without control unit 1 for information electronics - J794-
    • Removal and installation
    • Infotainment system, versions with control unit 1 for information electronics - J794-
    • Removal and installation
    • Infotainment system versions with display unit for front information display and operating unit control unit - J685- de 8"
    • Removal and installation
  3. - Control unit 1 for information electronics - J794-
    • Removal and installation
  4. - Window aerial in rear window
  5. - Connection for external audio sources - R199- o interface for external multimedia devices - R215-
    • Removal and installation
    Removing and installing infotainment system display
    Infotainment system screen, installation and removal, versions without control unit 1 for information electronics - J794- Special tools and workshop equipment required Puller - T10057- rem ...
