Seat Leon >> Lane change assist
SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - interior / Lane change assist

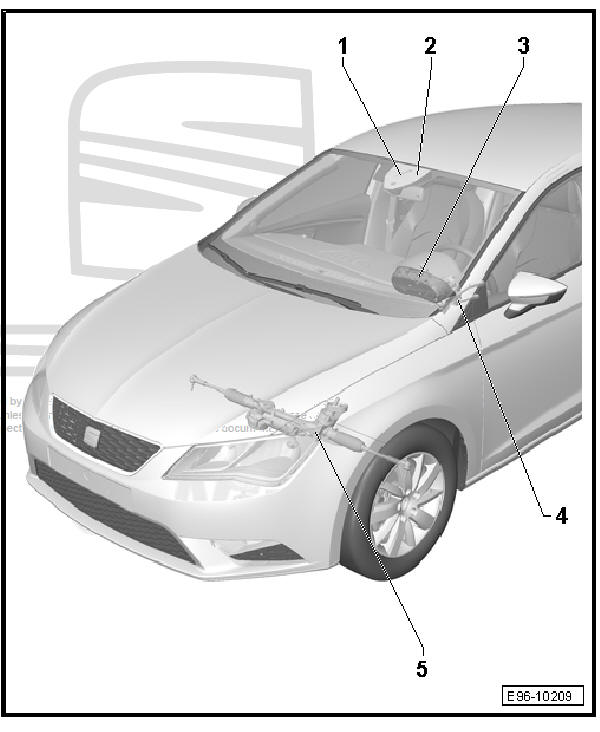

Overview - lane change assist
- - Front camera for driver assist
systems - R242-
- Removal and installation
- - Windscreen heater for sensors,
front - Z113-
- Installation location: in interior mirror support
- The Windscreen heater for sensors, front - Z113- is integrated in the retaining plate that is stuck on the windscreen and cannot be replaced separately. In the event of damage, the windscreen must be replaced
- - Instrument cluster
- Removal and installation
- - Switch module of the steering
column
- Activation of the lane change assist occurs using the driver assistance system button - E617- .
- Removal and installation
- - Steering box
