Remove immobiliser reader coil, vehicles with keyless access system

Removing

• Move steering wheel to rearmost and lowest position. Use the entire range of adjustment of the steering column for this purpose.
• Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Remove steering column trim (bottom) .

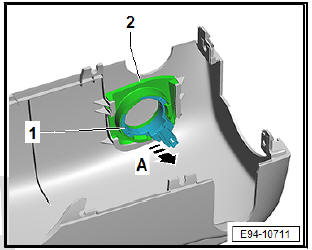

• Press the immobiliser reader coil - D2- -1- in the -direction of arrow A- from the mounting -2-.

Installation

Install in reverse order to dismantling, noting the following.

• Press immobiliser reader coil - D2- into mounting until it engages audibly.
