Seat Leon >> Removing and installing front parking aid senders

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove front bumper cover .

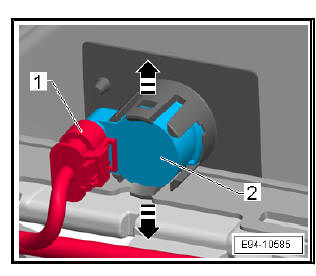

  • Pull-off the electrical connection -1- in the sensor.
  • Press on both lugs in the -direction of the arrow- and press the sender -2- from the outside to the inside.

Installing

Installation takes place in reverse order.

Lights, bulbs, switches - exterior

Removing and installing rear parking aid senders

Removing

  •  Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  •  Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove back bumper cover .

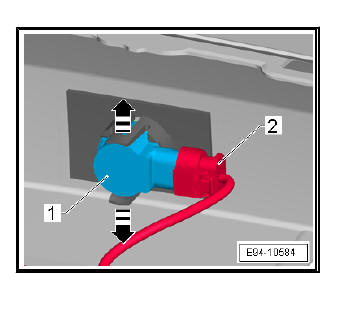

  • Pull-off the electrical connection -2- in the sensor.
  • Press on both lugs in the -direction of the arrow- and push the sender -1- from the outside to the inside.

Installing

Installation is carried out in the reverse sequence; note the following:
