Installing and removing the washer pump, vehicles without additional left cooler

Special tools and workshop equipment required

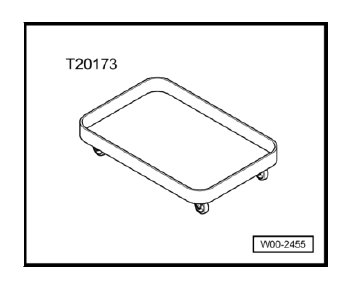

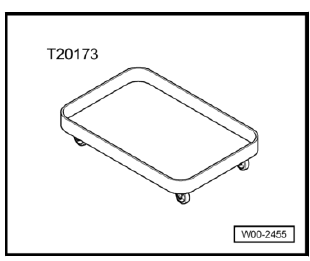

• Rear shelf - T20173-

Removing

• Place the vehicle on a lifting platform.
• Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Remove the left front wheel.
• Remove the spoiler on the front left wheel well .

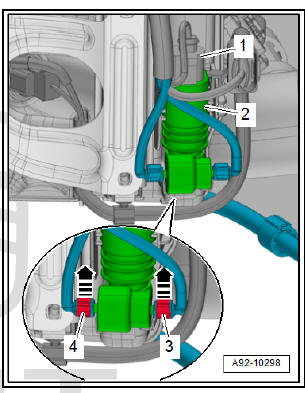

• Unplug the electrical connector -1-.
• Place below the collecting tray - T20173- .
• Unlock catches in -3 and- 4 -arrows- and the fluid line from the front and back light washer pump - V59- -2- .
• Lift windscreen and rear window washer pump - V59- out of washer fluid reservoir.

Installing

Installation is carried out in the reverse sequence; note the following:

• Check sealing grommet for damage.

Installing and removing the windscreen washer pump, vehicles with additional left cooler

Special tools and workshop equipment required

• Rear shelf - T20173-

Removing

• Place the vehicle on a lifting platform.
• Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Remove the right front wheel .
• Remove the spoiler on the front left wheel well .

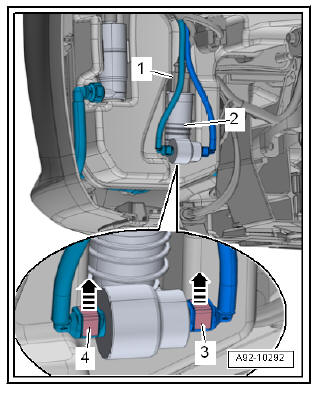

• Unplug the electrical connector -1-.
• Place below the collecting tray - T20173- .
• Unlock lid catches -3 and 4- -Arrows- and remove the fluid lines from the windscreen washer pump-2-.
• Lift washer pump out of washer fluid reservoir.

Installing

Installation is carried out in the reverse sequence; note the following:

• Check sealing grommet for damage.
