Seat Leon >> Removing and installing panoramic sliding sunroof seals

SEAT Leon Service and Repair Manual / General body repairs, exterior / Sunroof / Sun roof / Removing and installing panoramic sliding sunroof seals

Seal of the sliding/tilting sunroof frame: removing and installing

Caution

To remove the seal of the sliding/tilting sunroof frame, the following part does not have to be removed:

wind deflector

Sunroof

Removing

Remove panoramic window.

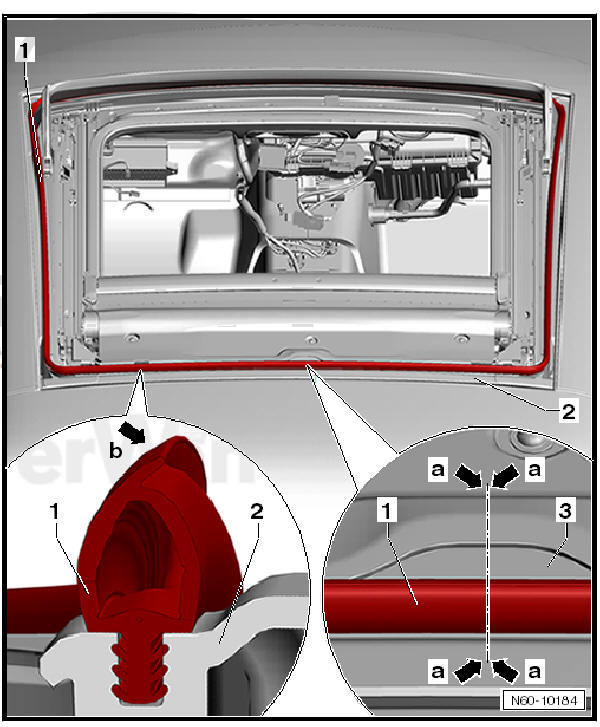

Remove the seal -1- from the frame -2-.

fitting

Temporarily place the seal -1- on the frame of the sliding/tilting sunroof -2-. Note the following:
Evenly place the seal -1- in its seat on the frame of the sliding/ tilting sunroof -2-.

Remove and install the panoramic window seal

Caution

To remove the panoramic window seal, the following does not have to be removed:

panoramic window

Sunroof

Removing

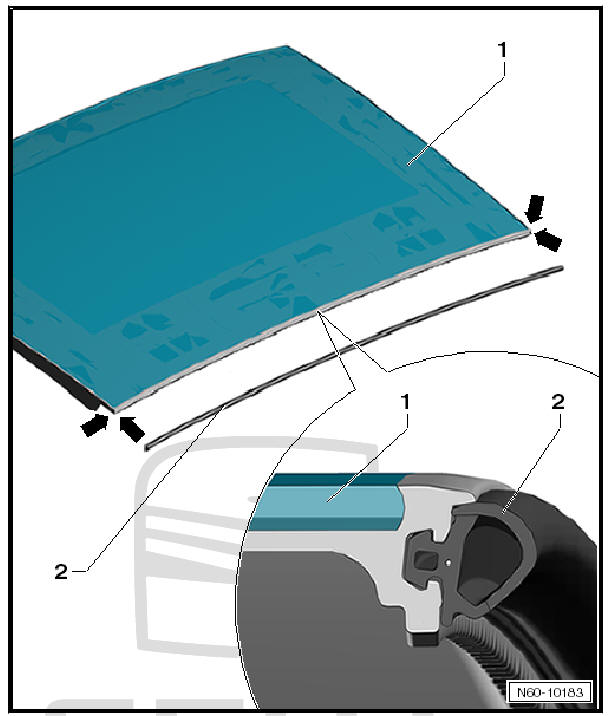

Open the panoramic window -1-.
Detach seal -2-.

fitting

Note Spray seal with soap solution to make installation easier.

Adjust the seal -2- on the outside edges of the panoramic window -1- -arrow-.
Fit the seal -2- in its seat in the panoramic window -1-.
