Removing

  • Remove the cover of the roller blind .
  • Move the slides into the closed roof position.

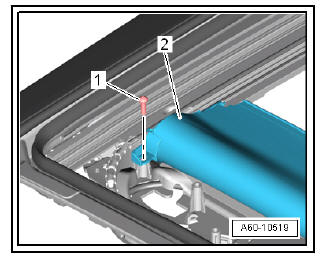

  • On both sides loosen the screws -1- of the bracket -2-.

Sunroof

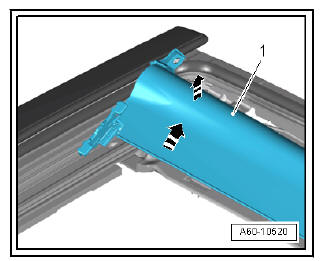

  • Lift sunroof sun blind -1- diagonally up at rear (as shown) and pull tension bow with slides towards rear out of guides (in direction of -arrows-). Remove the roller blind upward.

fitting

Sunroof

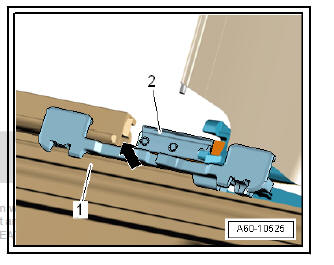

  • Place the bottom part of the sliding piece -2- into the guide rail -1-.

Sunroof

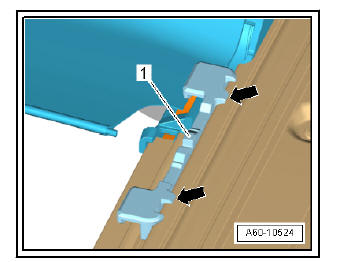

  • The tabs -arrow- at the bottom part of the slide piece must be inserted correctly in the guide rails.
  • The bottom part of the slide piece must glide softly onto the guide rails.

Sunroof

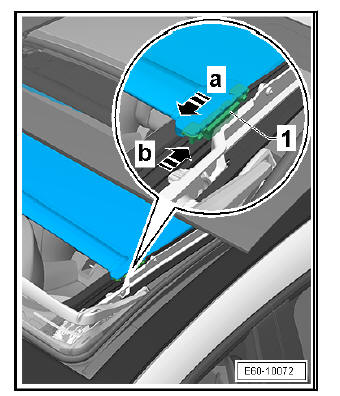

  • Fit the upper part of the sliding piece together with the pulling rib onto the bottom part and move the parts in the direction of -arrow a- or arrow -b-. Check if the tab -1- is correctly engaged.
  • Repeat the process on the other side of the pulling rib.

Sunroof

Sunroof

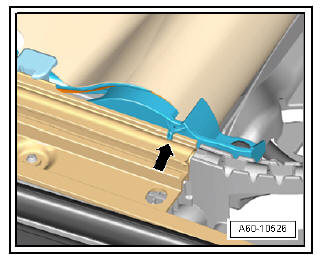

  • The tabs -arrow- of the bracket must be correctly fitted in the top side of the guide rail.

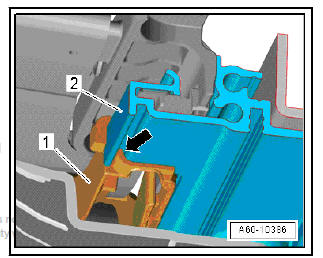

  • The tabs of the bracket must be correctly fitted in the bottom side of the guide rail -arrow-.

Sunroof

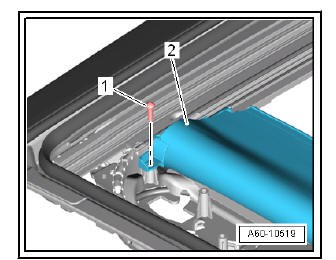

  • Mount the assembly of the roller blind -2- and the screws -1-.
  • Use the tightening torque of the screws.

Sunroof
