Special tools and workshop equipment required

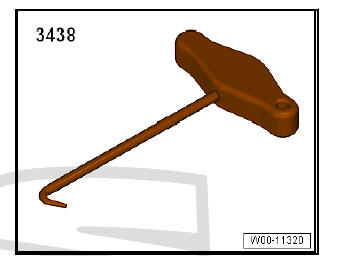

• Hooks - 3438-

Removing

• Door on the drivers side: Remove lock cylinder.
• Door on the passenger side: Remove the cover of the handle lock.

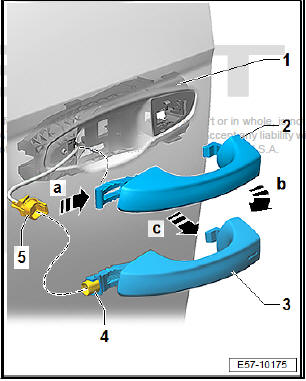

• Carefully pull handle -2- in direction -arrow a- and remove from mount -1-.
• Remove rear side of handle in direction -arrow b-.
• Remove door handle from mounting unit -1- at right angle -arrow c-.

Only for vehicles with keyless access

• Fix the electrical wire of the door handle -3- using adhesive tape on the door panel.
• Remove the electrical connector of the door handle -4-.

fitting

Fit in reverse order from removal, remembering the following:

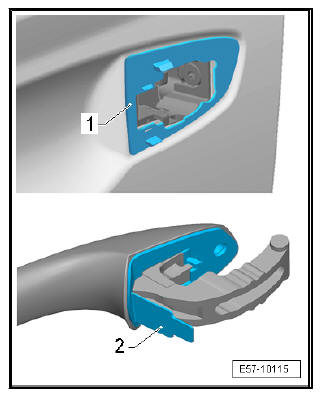

• If the rear -1- and the front bases -2- are damaged or brittle, replace them.
• Make sure that the rear base and the front base are installed correctly.

Only for vehicles with keyless access

• Connect the electrical connector of the door handle.

Continued for all vehicles

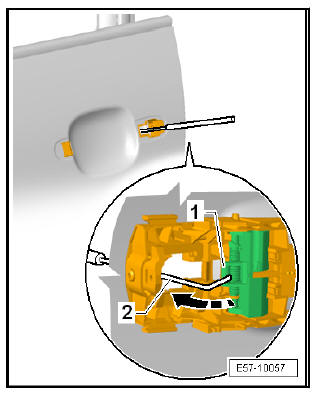

• Insert an Allen key -2- through the opening in the cover and place it so that the articulated lever can be pulled -1- in the direction of the -arrow-.
• Pull Allen key until the articulated lever can go no further -1-.

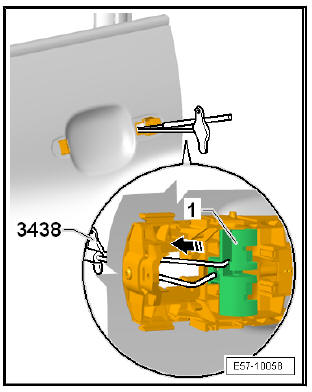

• Without releasing the Allen key, insert the hook - 3438- through the opening in the lever cover and hold the mechanism -1- at the groove and pull.

Note Place the hook - 3438- so that it is not in the way when inserting the lever.

• Remove the Allen key and keep holding the mechanism -1- with the hook - 3438- .

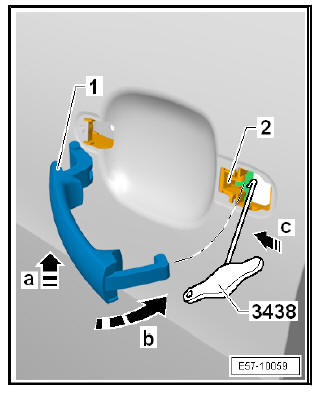

• Place the lever -1- at right angles -arrow a- on the housing assembly-2-.
• Pivot the lever -1- towards the inside of the door-arrow b-.
• Move the lever forwards -arrow c- to fit it in the housing assembly.
• Pull off the hook - 3438- .
• Driver side only: Install lock cylinder
• Passenger side only: Mount the lock cover of the outside handle

Removing and installing mounting bracket

Removing

• Partially remove the control cable on the mount side of the outside handle
• Remove the outside handle

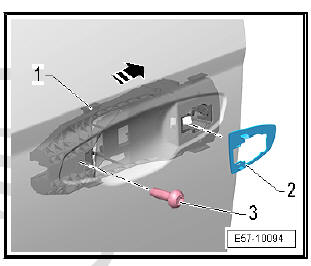

• Remove the rear base -2-.
• Unscrew the bolt -3-.
• Carefully press the mount of the outside handle -1- from the door inside in the -direction of the arrow- and remove from the door.

fitting

Installation is done in reverse order of removal operations.
