Seat Leon >> Removing and installing inner door cover

Special tools and workshop equipment required

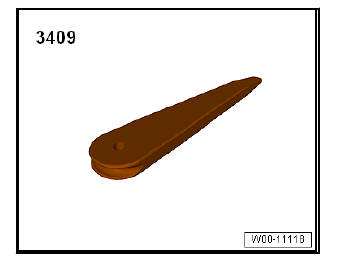

  • Release lever - 3409-

Front doors, door components, central locking

Removing

  • Removing interior trim of front door.

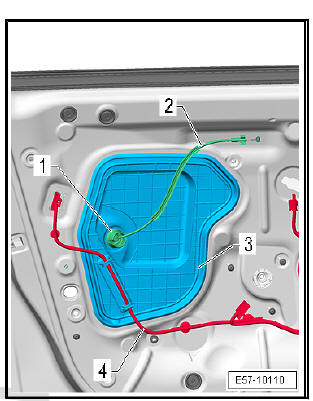

  • Move electrical wiring harness -4- clear.
  • With the wedge - 3409- detach the inner protection cover of the door -3-.
  • Release the grommet -1- of the inside handle cable -2- from the inside protective cover.

Front doors, door components, central locking

fitting

Fit in reverse order from removal, remembering the following:

  • You should hear the inside protection cover click into place.
  • You inside protection must be installed flush.

Slip plate - removing and installing

Removing

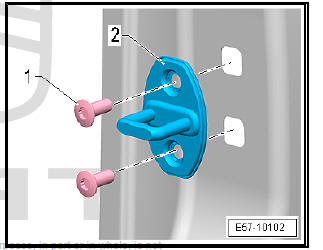

  • Unscrew bolts -1- and remove strike plate -2-.

fitting

  • Fit striker pin -2- and lightly tighten screws -1-.
  • Adjust strike plate

Front doors, door components, central locking
